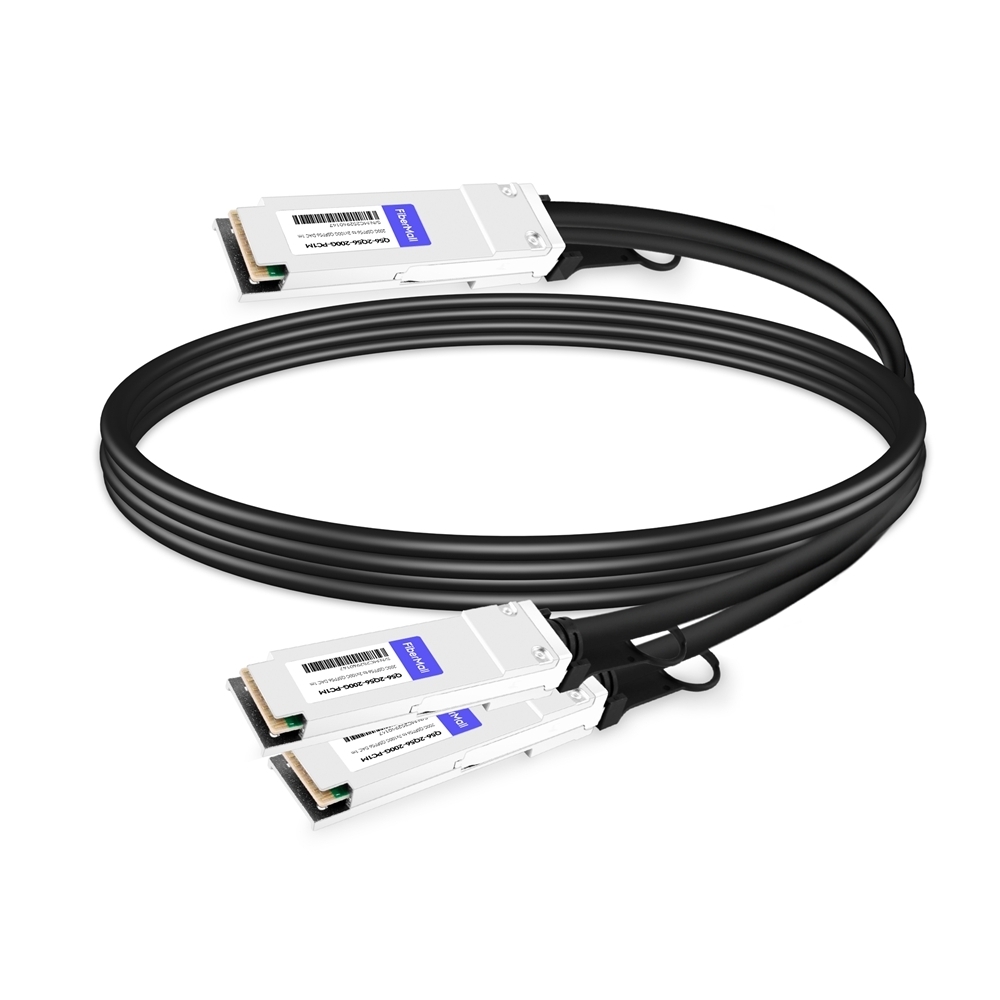

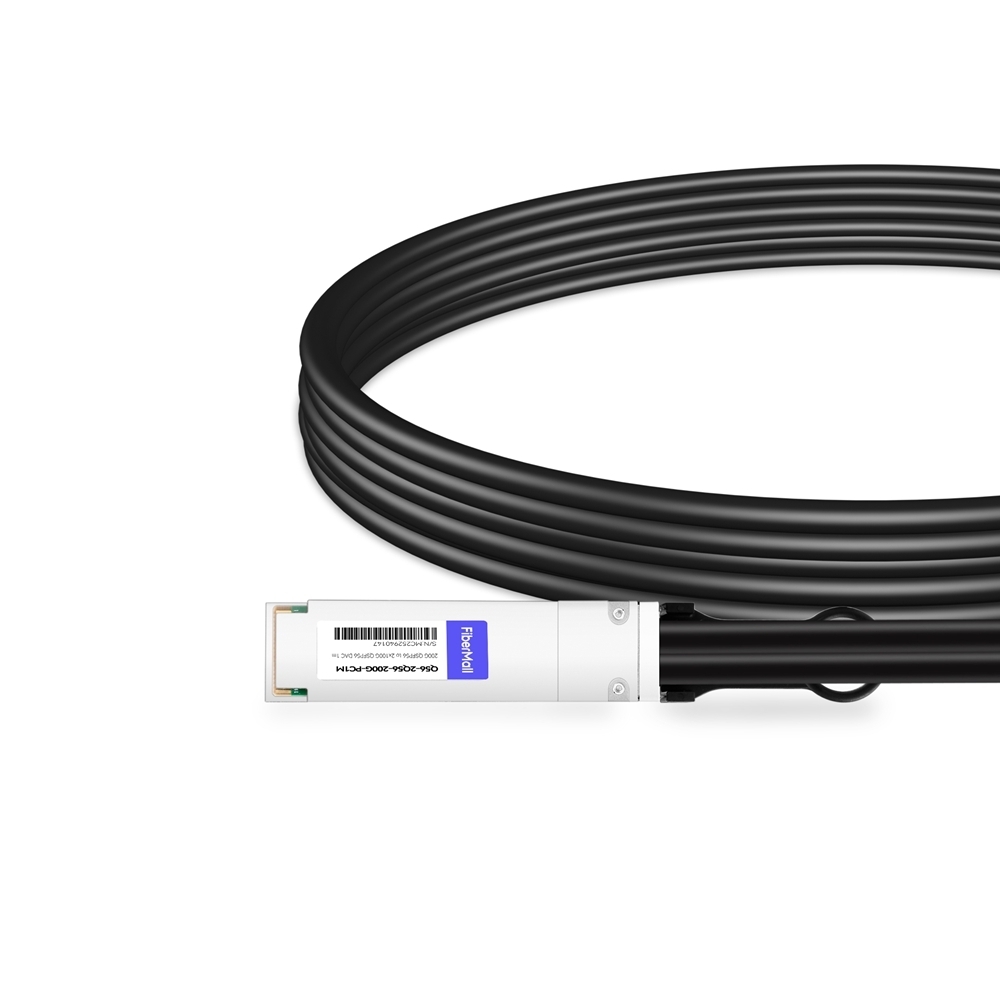

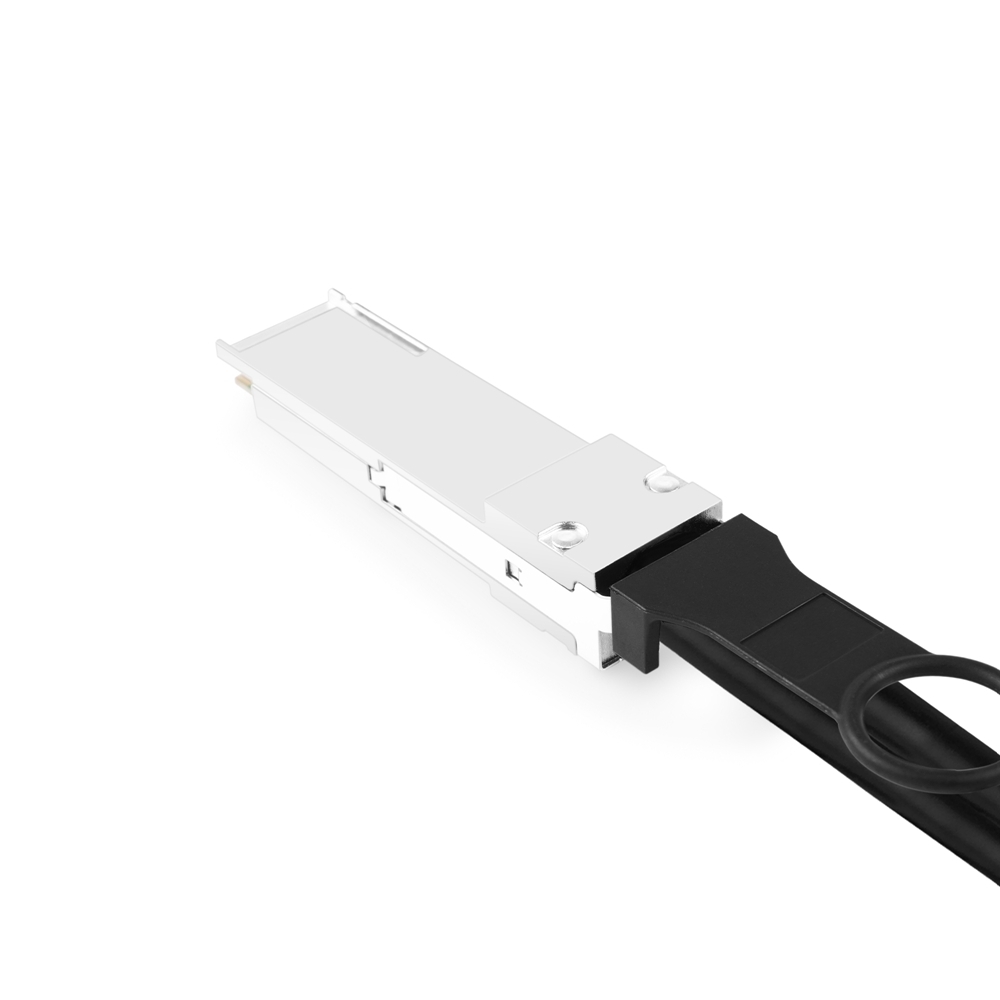

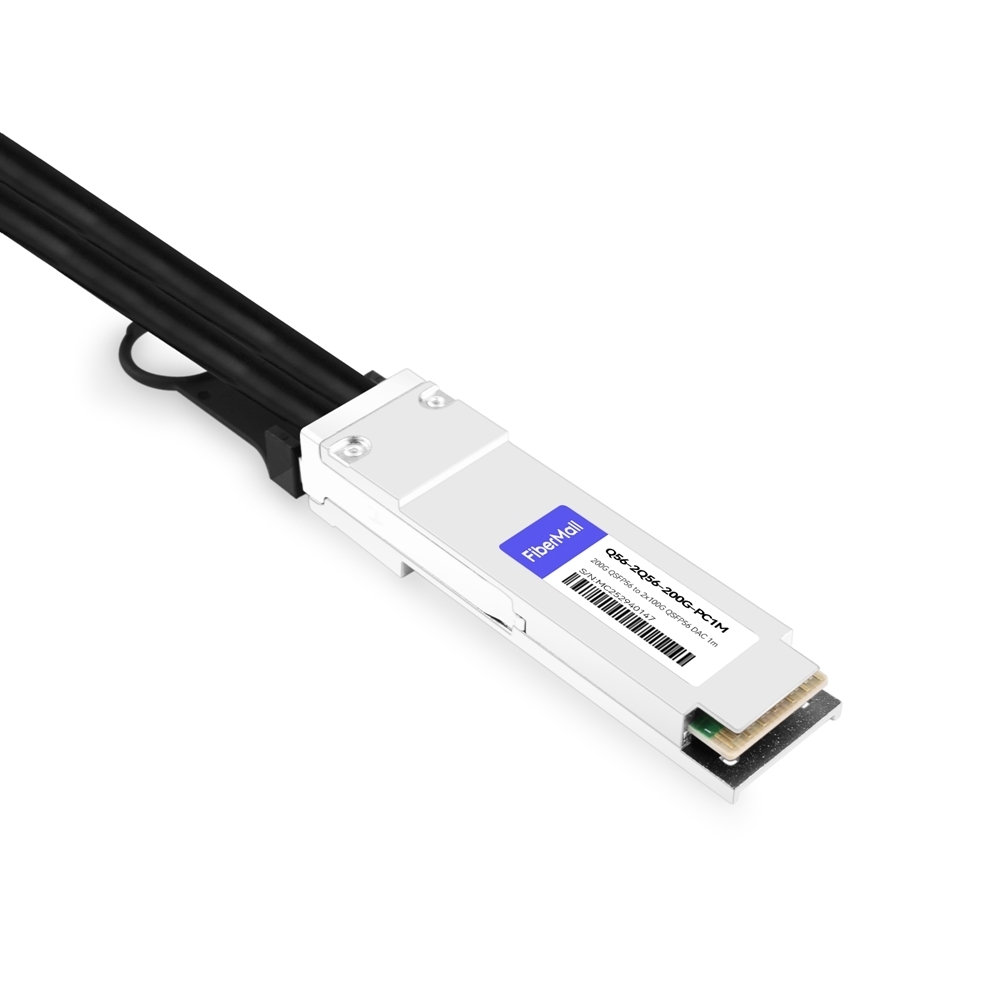

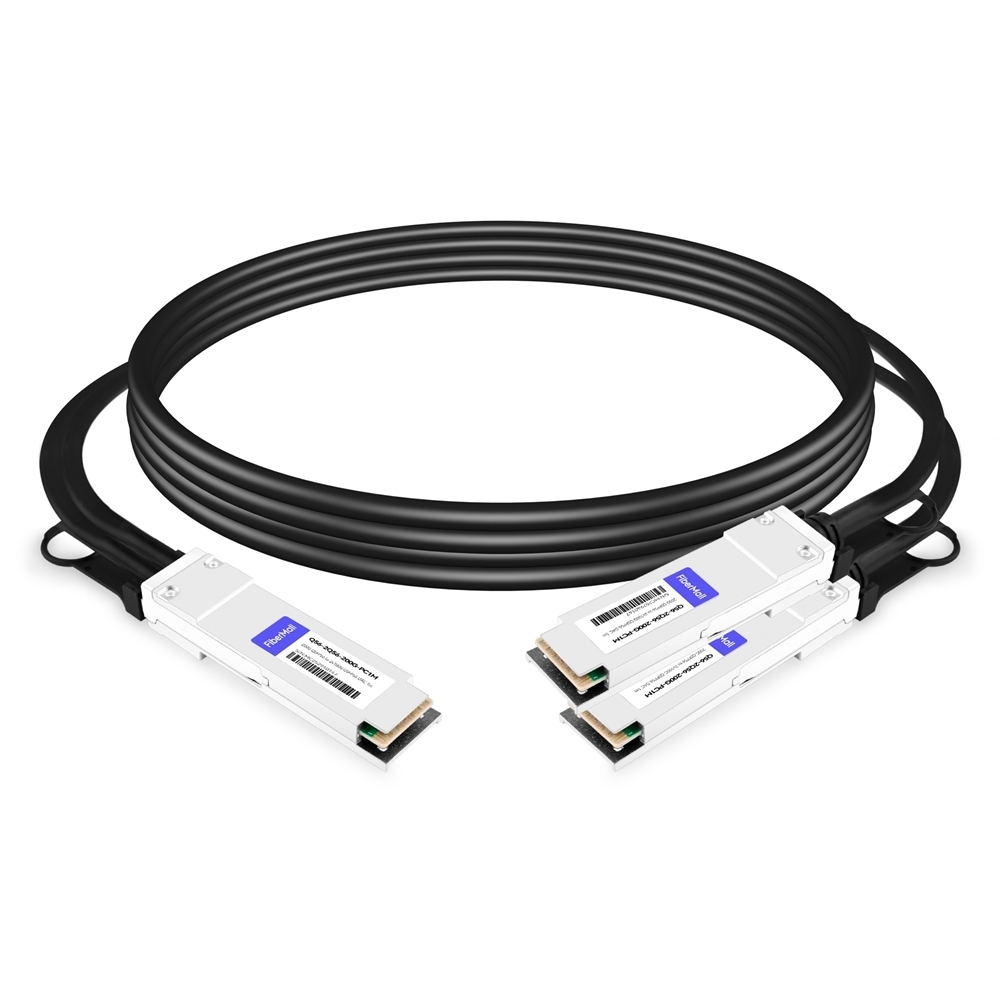

NVIDIA(Mellanox) MCP7H50-H001R30 Compatible 1m (3ft) Infiniband HDR 200G QSFP56 to 2x100G QSFP56 PAM4 Passive Breakout Direct Attach Copper Cable
Price range: $55.00 through $75.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA(Mellanox) MCP7H50-H001R30 Compatible 1m Infiniband HDR 200G QSFP56 to 2x100G QSFP56 Twinax Copper Cable (QSFP56 to QSFP56 DAC Breakout Cable, Passive AWG30 1m)
200G QSFP56 to 2x 100G QSFP56 Breakout DAC (Direct Attach Copper Cable) assemblies are designed to support 200G/2x100G Ethernet and InfiniBand HDR/HDR100. This breakout cable complies with IEEE 802.3cd, SFF-8665, and QSFP56 MSA standards. It connects a 200G QSFP56 port on one end and two 100G QSFP56 ports on the other end and is suitable for data centers and HPC (High-Performance Computing).
Product Details
| Mellanox Compatible | MCP7H50-H001R30 | Vendor Name | FiberMall |
| Form Factor | 200G QSFP56 to 2xQSFP56 | Max Data Rate | 200Gb/s |
| Wire Gages | 30AWG | Cable Length | 1m (3.3ft) |
| Minimum Bend Radius | 26mm 34mm | Jacket Material | PVC (OFNR) |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Modulation Format | PAM4 |
| Protocols | IEEE 802.3cd, SFF-8665 and SFF-8636 | Application | 200G Ethernet and InfiniBand HDR |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Compatible | Mellanox, NVIDIA |
|---|---|
| Length | 1m (3.3ft), 1.5m (5ft), 2m (7ft), 3m (10ft) |
| Mellanox Compatible | MCP7H50-H001R30 |
| Vendor Name | FiberMall |
| Form Factor | 200G QSFP56 to 2xQSFP56 |
| Max Data Rate | 200Gb/s |
| Wire Gages | 30AWG |
| Cable Length | 1m (3.3ft) |
| Minimum Bend Radius | 26mm 34mm |
| Jacket Material | PVC (OFNR) |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Modulation Format | PAM4 |
| Protocols | IEEE 802.3cd, SFF-8665 and SFF-8636 |
| Application | 200G Ethernet and InfiniBand HDR |
