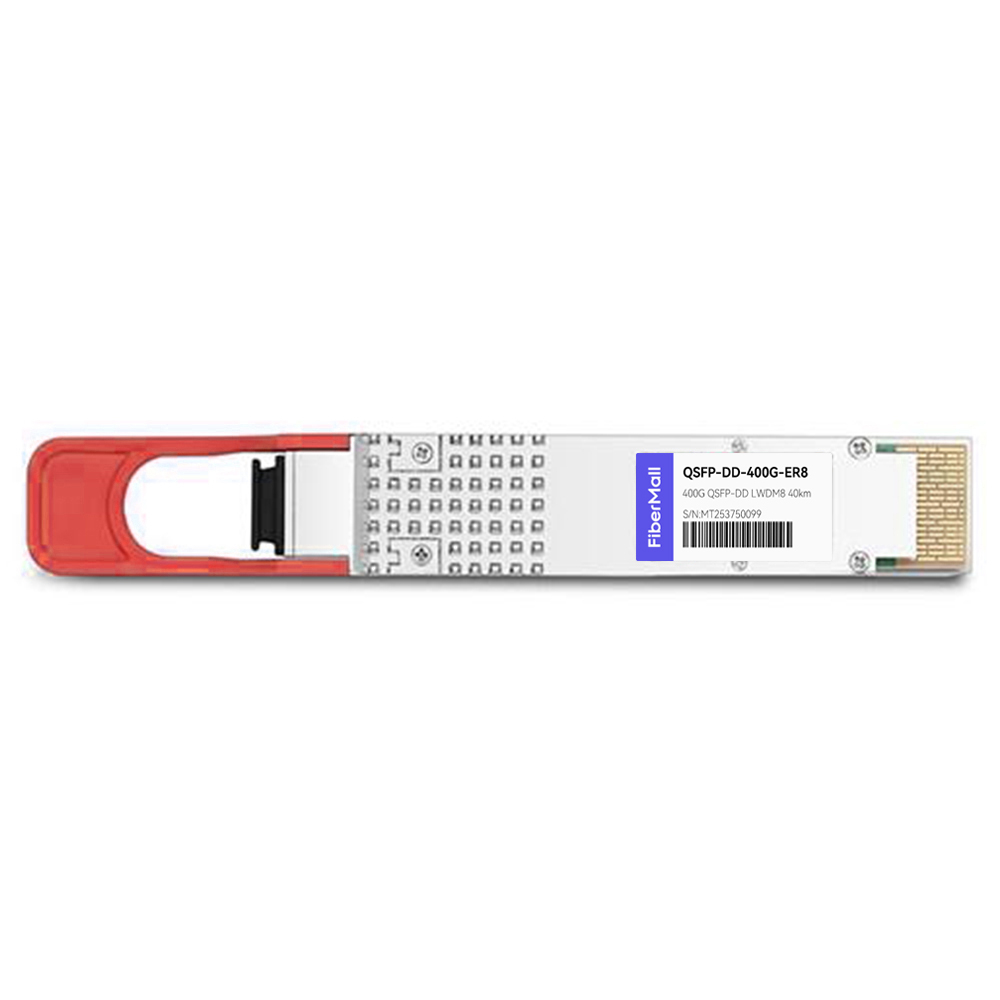

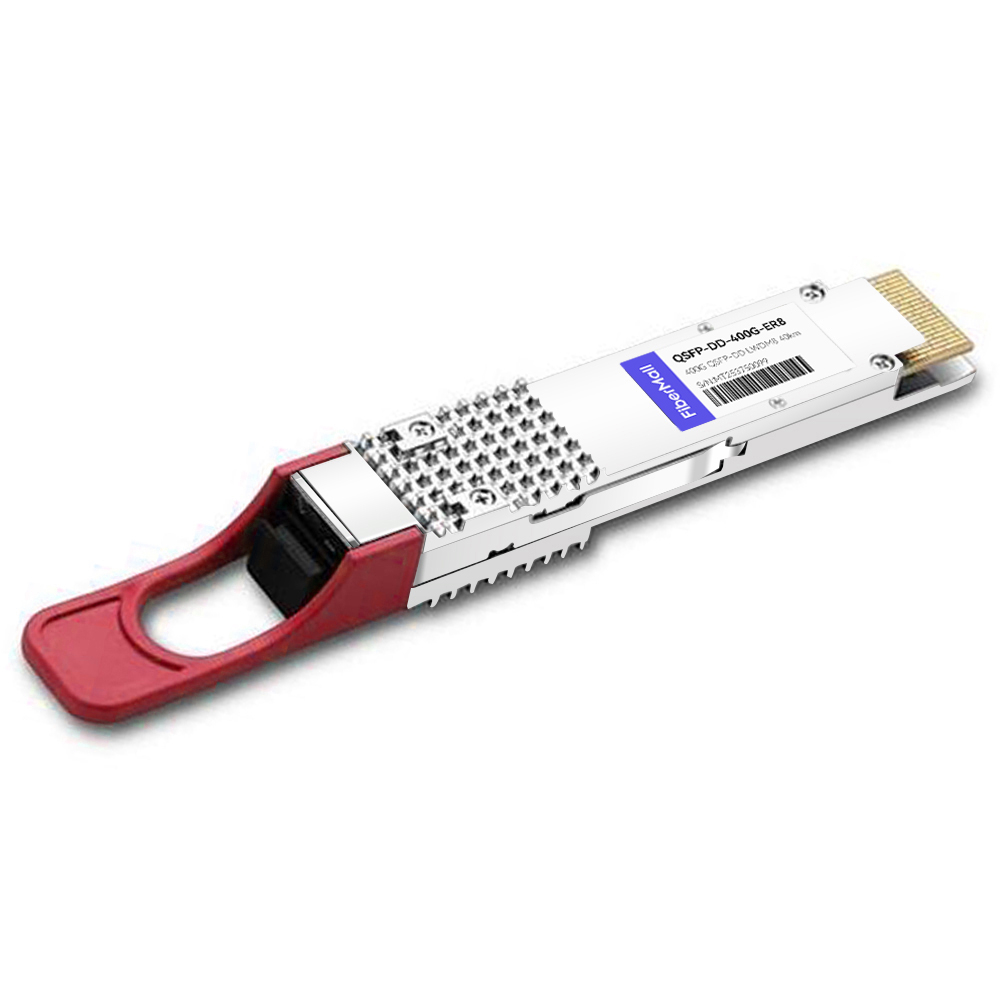

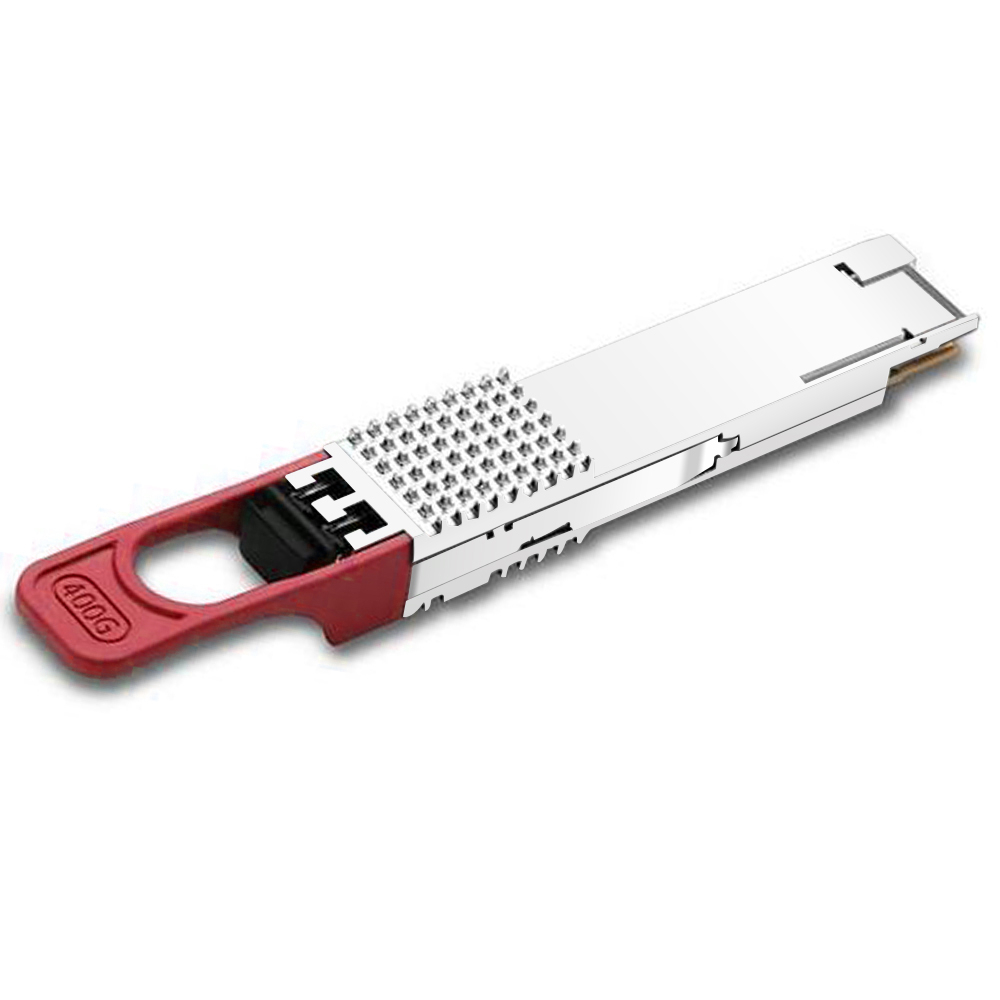

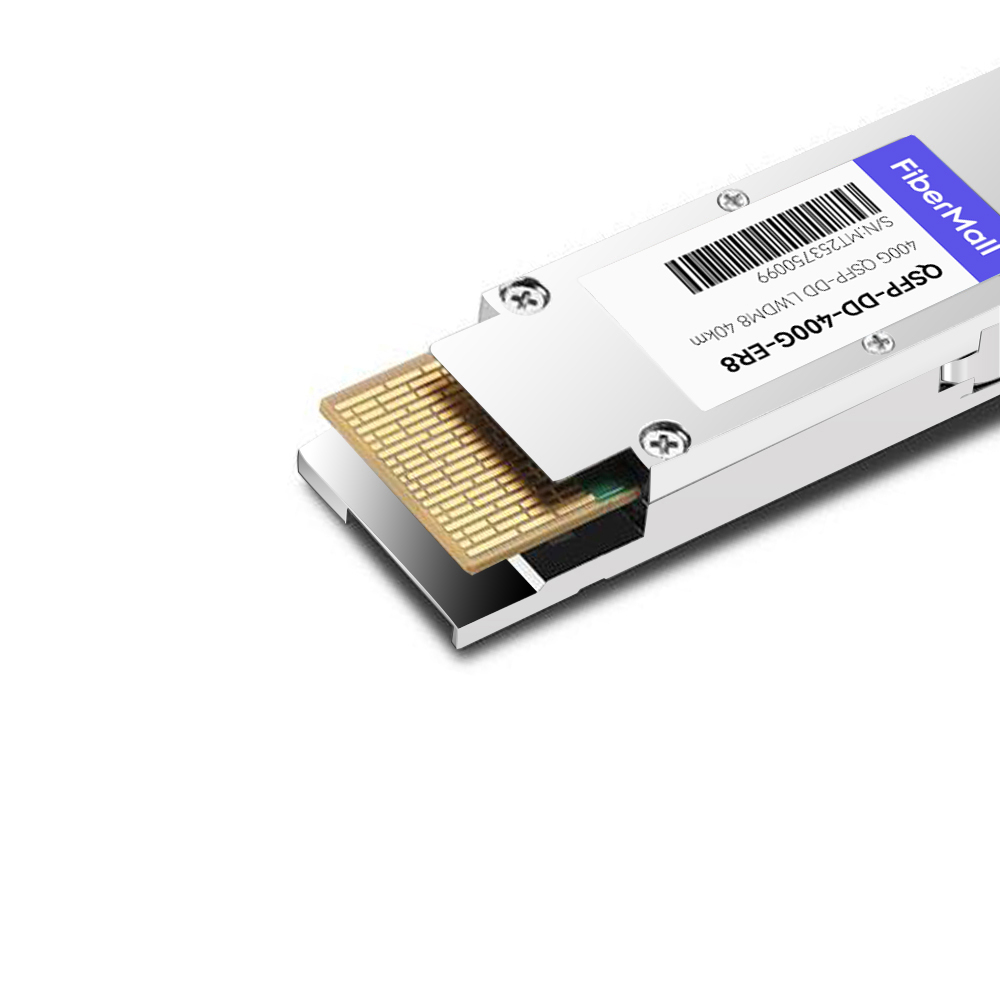

NVIDIA Compatible 400G QSFP-DD ER8 PAM4 LWDM8 40km LC SMF FEC Ethernet Optical Transceiver Module
Price range: $149.00 through $3,800.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA Compatible 400G QSFP-DD ER8 PAM4 8 LAN-WDM MUX/DEMUX design Optical Transceiver Module (LWDM8 SMF LC 40km with FEC DDM)
The 400GBASE-ER8 module supports link lengths of up to 40km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. It complies with the IEEE 802.3bs 400GBASE-ER8. The 400 Gigabit Ethernet signal is carried over eight wavelengths, and the device manages multiplexing and demultiplexing of these wavelengths.
Product Details
| Arista Networks Compatible | QSFP-DD-400G-ER8 | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1273.54nm, 1277.89nm, 1282.26nm 1286.66nm, 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm |
Max Distance | 40km |
| Modulation Format | PAM4 | Host Required | FEC |

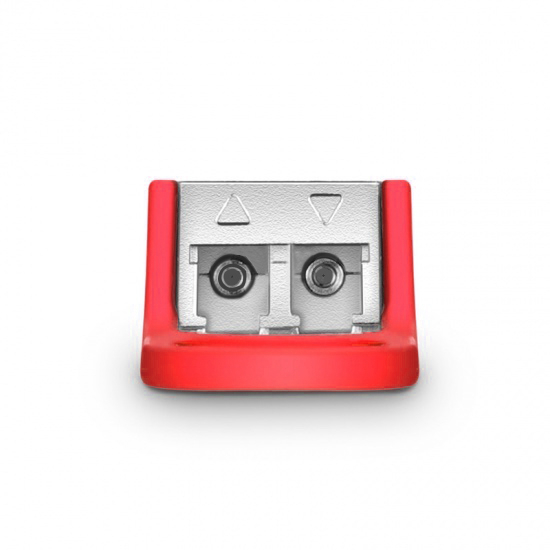

| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -18.6~-4.4dBm | Receiver Sensitivity | < -16.1dBm (SECQ–17.5dBm) |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 15.4W |
| Protocols | QSFP-DD MSA, IEEE 802.3bs 400GBASE-ER8 |
Application | 400G Ethernet, Telecom Networking, Infiniband Interconnects |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Compatible | NVIDIA |
|---|---|
| Transceiver Type | T-DQ8FNS-N00-M, MMS1V00-WM, QSFP-DD-400G-ER4, QSFP-DD-400G-ER8 |
| Arista Networks Compatible | QSFP-DD-400G-ER8 |
| Vendor Name | FiberMall |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Wavelength | 1273.54nm, 1277.89nm, 1282.26nm 1286.66nm, 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm |
| Max Distance | 40km |
| Modulation Format | PAM4 |
| Host Required | FEC |
| Connector | Duplex LC |
| Voltage Supply | 3.3V |
| Cable Type | SMF |
| DDM Support | Yes |
| Transmitter Type | EML |
| Receiver Type | PIN |
| TX Power | -18.6~-4.4dBm |
| Receiver Sensitivity | < -16.1dBm (SECQ–17.5dBm) |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Maximum Power | < 15.4W |
