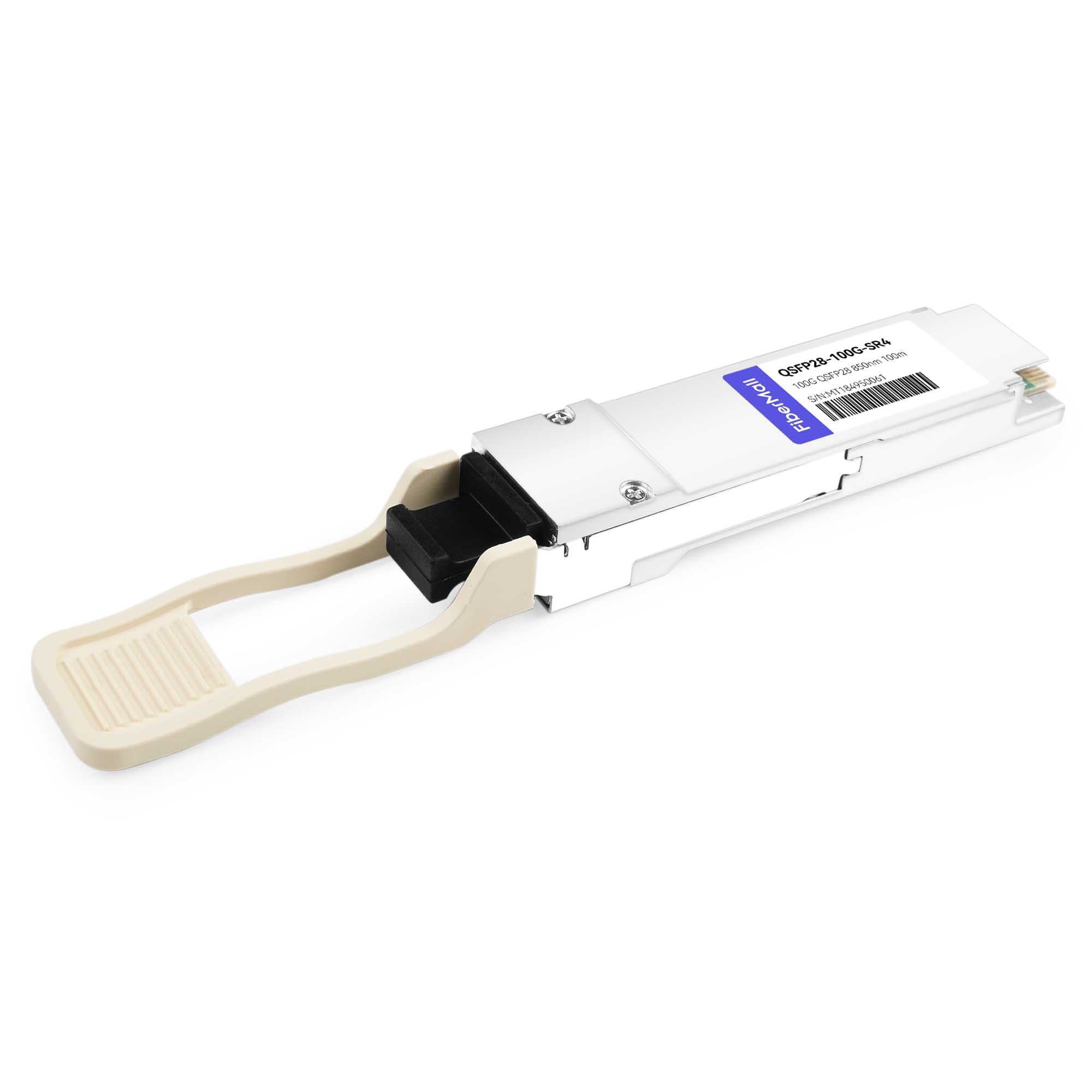

NVIDIA(Mellanox) MMA1B00-E100 Compatible 100G InfiniBand EDR QSFP28 SR4 850nm 100m MTP/MPO MMF DDM Transceiver Module
$40.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA(Mellanox) MMA1B00-E100 Compatible 100G QSFP28 SR4 Transceiver Module (850nm MMF 100m MTP/MPO DDM)
The 100G QSFP28 SR4 transceiver modules are designed for 100G Ethernet links over multimode fiber. They are compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostic functions are available through the QSFP28 MSA-specified I2C interface.
Product Details
| Mellanox Compatible | MMA1B00-E100 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 850nm | Max Distance | 100m on OM4 |
| Connector | MTP/MPO-12 | Transmitter Type | 850nm VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8.4~+2.4dBm | Receiver Sensitivity | < -10.3dBm |
| Protocols | InfiniBand EDR 100G, 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Mellanox Compatible | MMA1B00-E100 |
|---|---|
| Vendor Name | FiberMall |
| Form Factor | QSFP28 |
| Max Data Rate | 103.1Gbps |
| Wavelength | 850nm |
| Max Distance | 100m on OM4 |
| Connector | MTP/MPO-12 |
| Transmitter Type | 850nm VCSEL |
| Cable Type | MMF |
| Receiver Type | PIN |
| TX Power | -8.4~+2.4dBm |
| Receiver Sensitivity | < -10.3dBm |
| Protocols | InfiniBand EDR 100G, 100G Ethernet, MSA Compliant |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
