NVIDIA(Mellanox) C-DQ8FNM050-H0-M Compatible 50m (164ft) 400G QSFP-DD to QSFP-DD Active Optical Cable
Price range: $25.00 through $825.00
Subscription successful
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

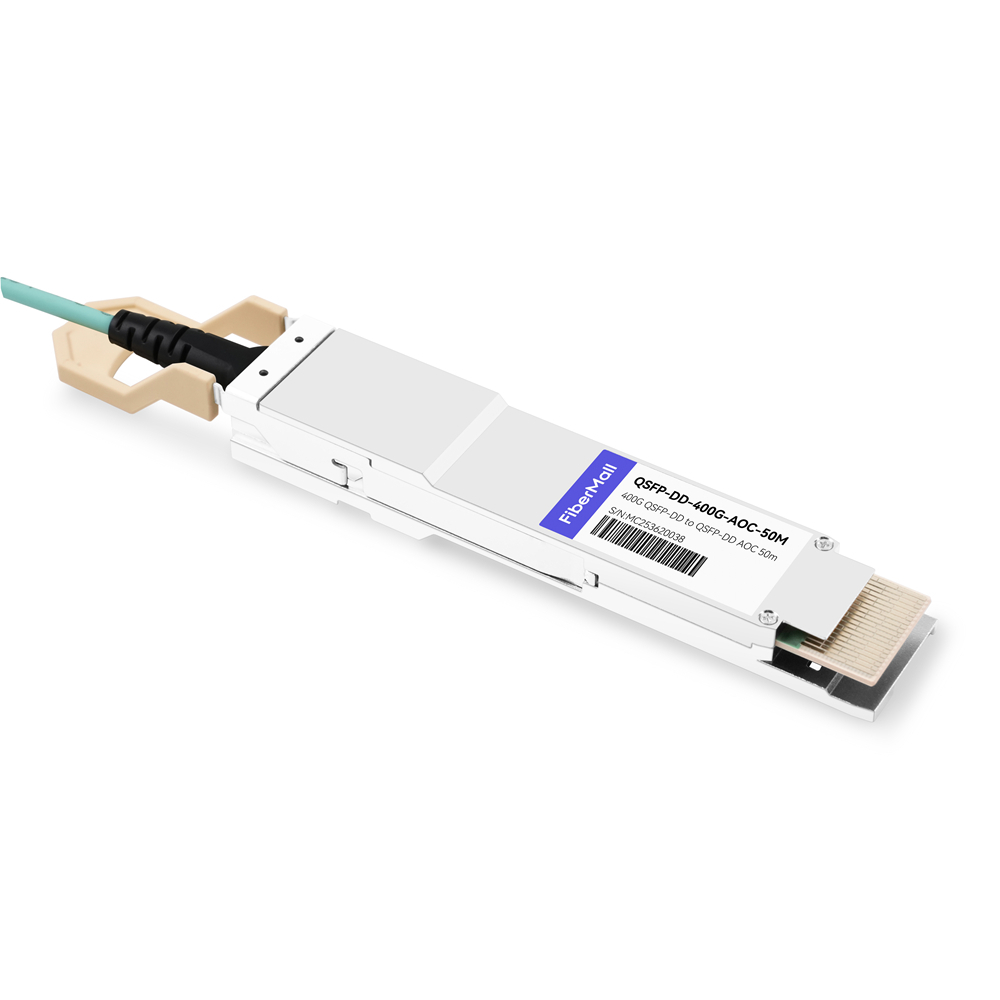

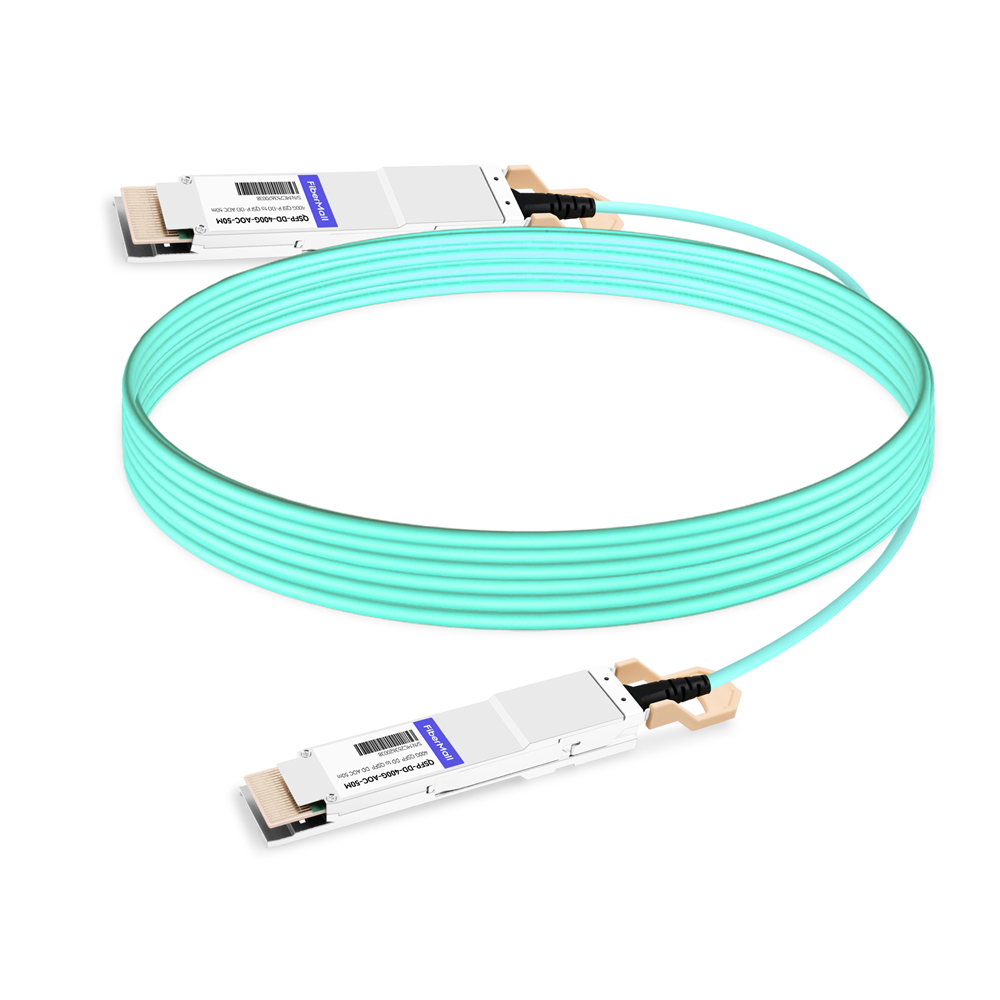

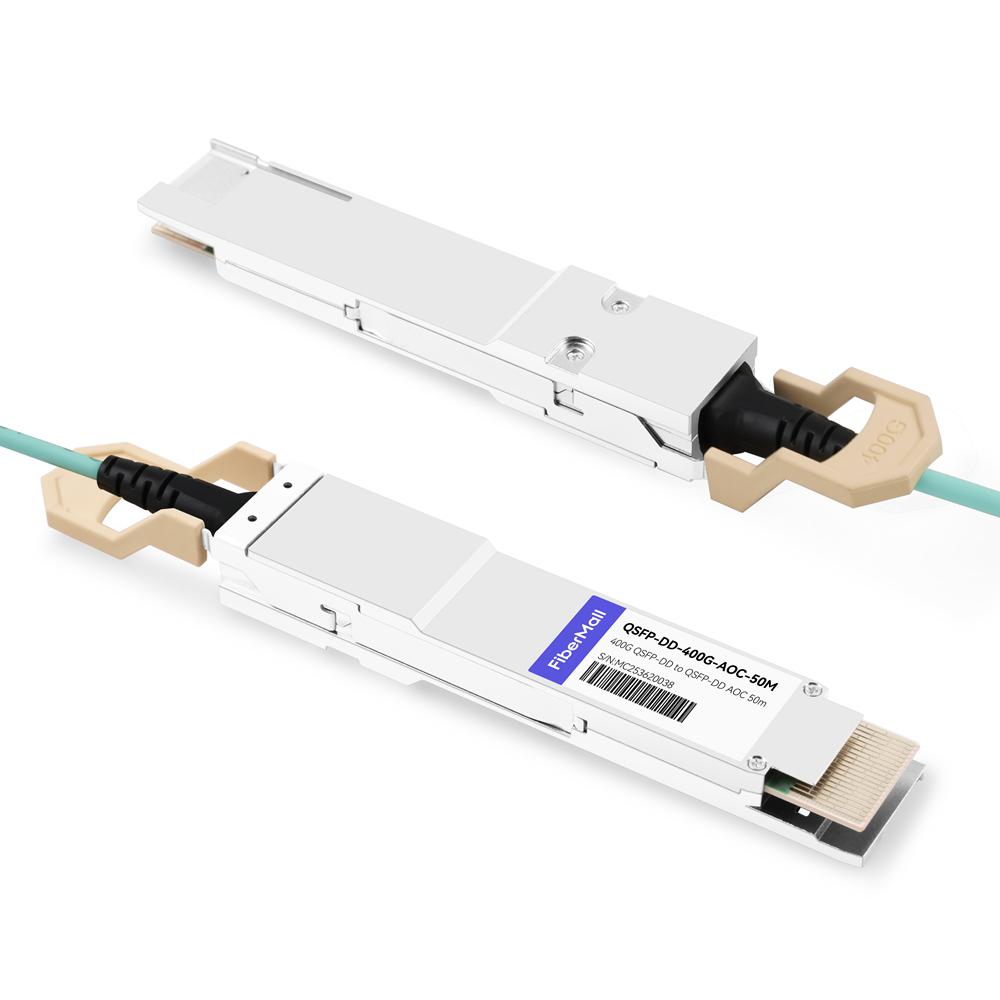

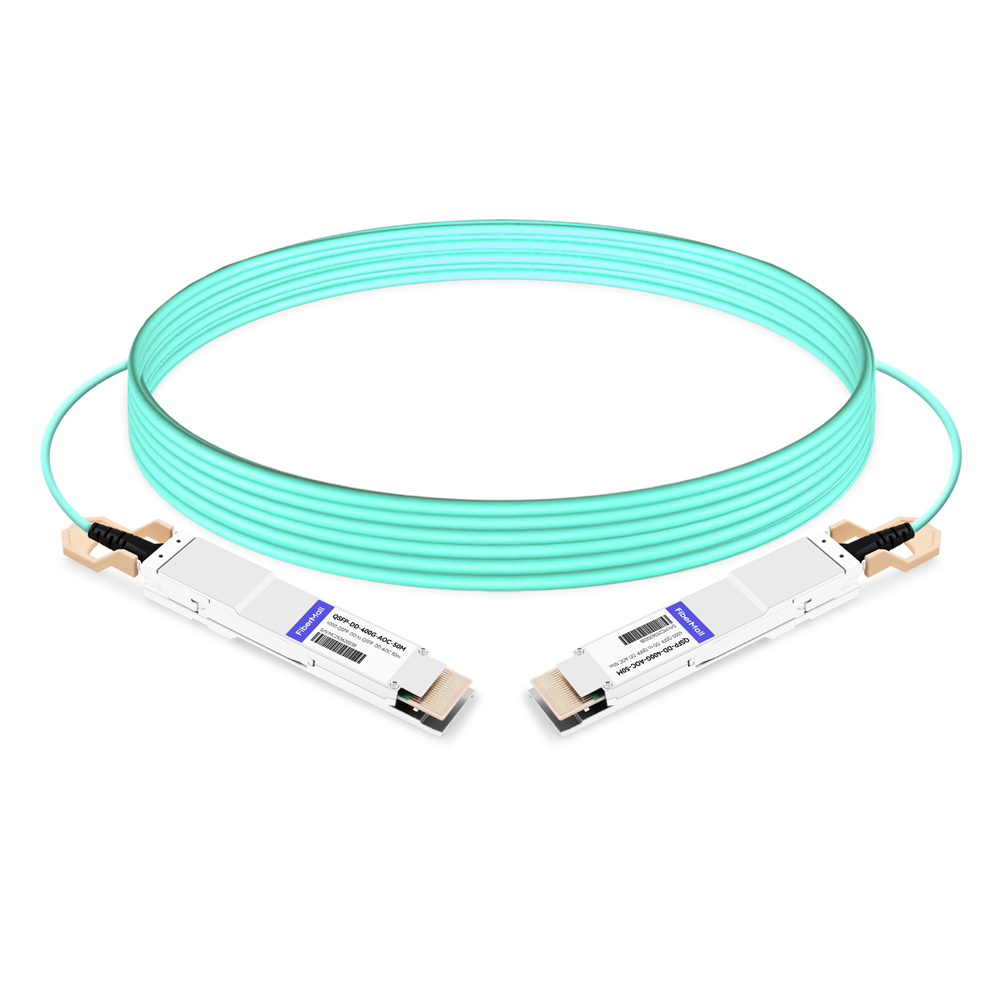

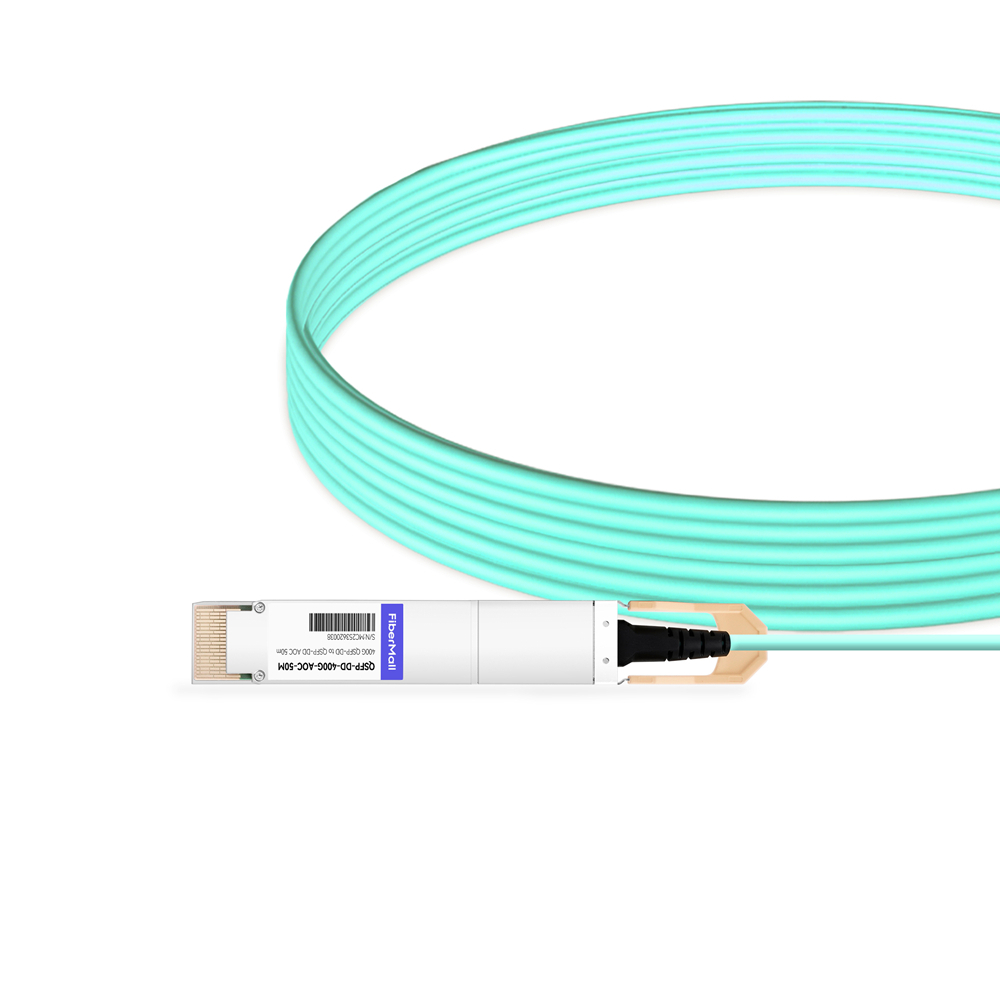

NVIDIA(Mellanox) C-DQ8FNM050-H0-M Compatible 400G QSFP-DD AOC (QSFP-DD to QSFP-DD Active Optical Cable OM3 MMF 50-meter)
400G QSFP-DD AOC (Active Optical Cable) assemblies are designed to support 400G Ethernet. 400G QSFP-DD AOC components are compatible with IEEE 802.3cd 400GBASE-SR8 and IEEE 802.3cd 200GBASE-SR4. The module supports eight electrical interface lanes that operate in 50G PAM4 encoding mode, enabling 400G (8x50G) data rates. The 400GBASE-SR8 QSFP-DD AOC assembly is used to connect multiple 400G signals from the server side (NIC) to the data center aggregation switch.
Product Details
| Mellanox Compatible | C-DQ8FNM050-H0-M | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gb/s |
| Wavelength | 850nm | Cable Length | 50m (164.04ft) |
| Modulation Format | DSP/PAM4 | Host Required | FEC |
| Number of Lanes | 8 TX and 8 RX (50G) | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | <10.0W Each End |
| Protocols | QSFP-DD Rev 4.0 and IEEE 802.3bs, SFF-8679, CMIS3.0 |
Application | Ethernet for 400GBASE-SR8 |
Quality
Assurance
Excellent quality is the foundation of FiberMall’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Compatible | Mellanox |
|---|---|
| Length | 0.5m (1.6ft), 0.5m (Ethernet), 1m (3ft), 1m (Ethernet), 1.5m (5ft), 1.5m (Ethernet), 2m (7ft), 2m (Ethernet), 2.5m (8ft), 2.5m (Ethernet), 3m (10ft), 3m (Ethernet), 5m ((Ethernet)), 5m (16ft), 5m (Ethernet), 10m (33ft), 10m (Ethernet), 15m (49ft), 15m (Ethernet), 20m (66ft), 20m (Ethernet), 30m (98ft), 30m (Ethernet), 50m (164ft), 50m (Ethernet), 100m (328ft), 100m (Ethernet) |
| Mellanox Compatible | C-DQ8FNM050-H0-M |
| Vendor Name | FiberMall |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gb/s |
| Wavelength | 850nm |
| Cable Length | 50m (164.04ft) |
| Modulation Format | DSP/PAM4 |
| Host Required | FEC |
| Number of Lanes | 8 TX and 8 RX (50G) |
| Voltage Supply | 3.3V |
| Cable Type | MMF |
| DDM Support | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Maximum Power | <10.0W Each End |
| Protocols | QSFP-DD Rev 4.0 and IEEE 802.3bs, SFF-8679, CMIS3.0 |
| Application | Ethernet for 400GBASE-SR8 |
