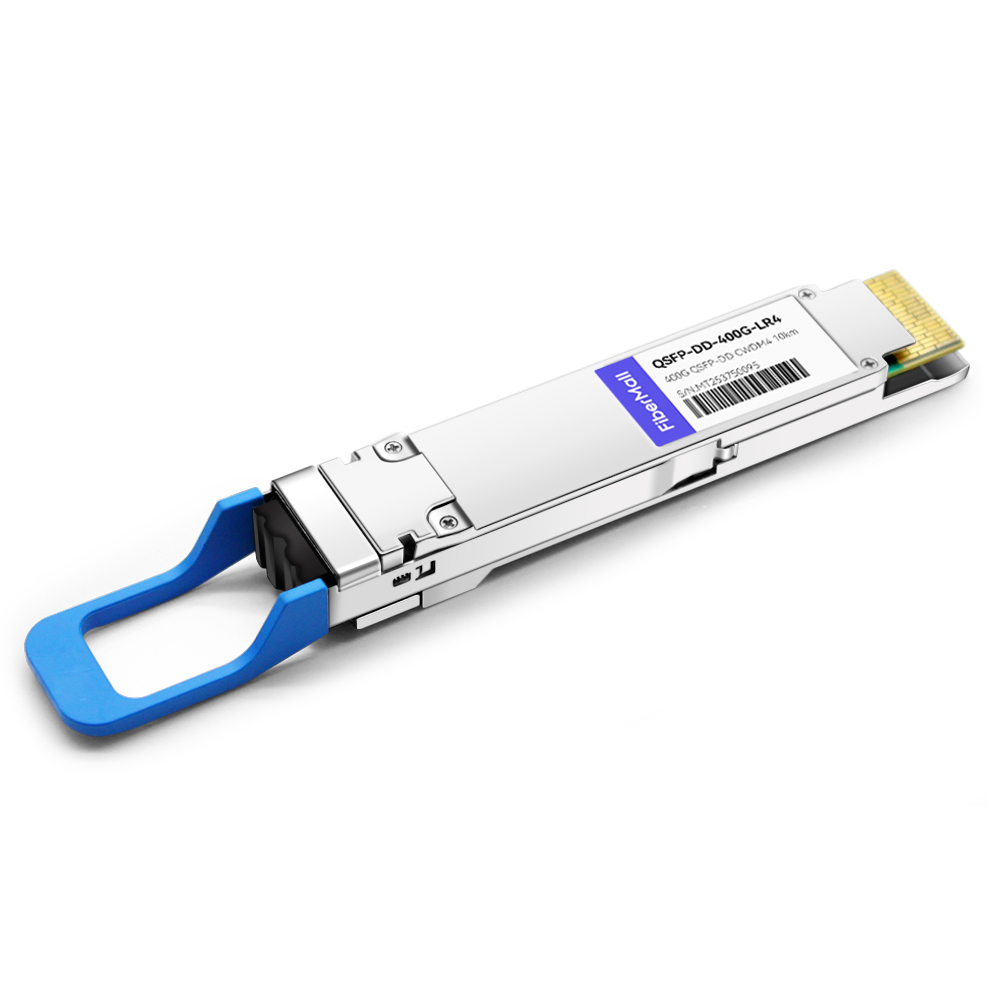

NVIDIA(Mellanox) MMS1V90-WR Compatible 400G QSFP-DD LR4 PAM4 CWDM4 10km LC SMF FEC Optical Transceiver Module
$600.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA(Mellanox) MMS1V90-WR Compatible 400G QSFP-DD LR4 PAM4 CWDM4 lanes MUX/DEMUX design 10km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 10km with FEC DDM)
NVIDIA(Mellanox) MMS1V90-WR Compatible LR4 Optical Transceiver fits into standard QSFP-DD slots and drives 400G Ethernet up to 10km distances with MUX/DEMUX design. The Transceiver modules support link lengths up to 10 km over a pair of standard G.652 single-mode fiber (SMF) with duplex LC connectors. It complies with the IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. It uses built-in CWDM mux/demux and duplex LC connectors to aggregate 4 channels with 100G capacity per channel, using 1271 to 1331nm CWDM lasers.
Product Details
| Mellanox Compatible | MMS1V90-WR | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 10km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| TX Power | -3.3~+3.5dBm | Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
| Protocols | QSFP-DD MSA, 100G Lambda MSA 400G-LR4 |
Application | 400G Ethernet, Data Center Interconnect |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Mellanox Compatible | MMS1V90-WR |
|---|---|
| Vendor Name | FiberMall |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm |
| Max Distance | 10km |
| Modulation Format | PAM4 |
| Host Required | FEC |
| Connector | Duplex LC |
| Voltage Supply | 3.3V |
| Cable Type | SMF |
| DDM Support | Yes |
| Transmitter Type | CWDM EML |
| Receiver Type | PIN |
| TX Power | -3.3~+3.5dBm |
| Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Maximum Power | < 12.0W |
