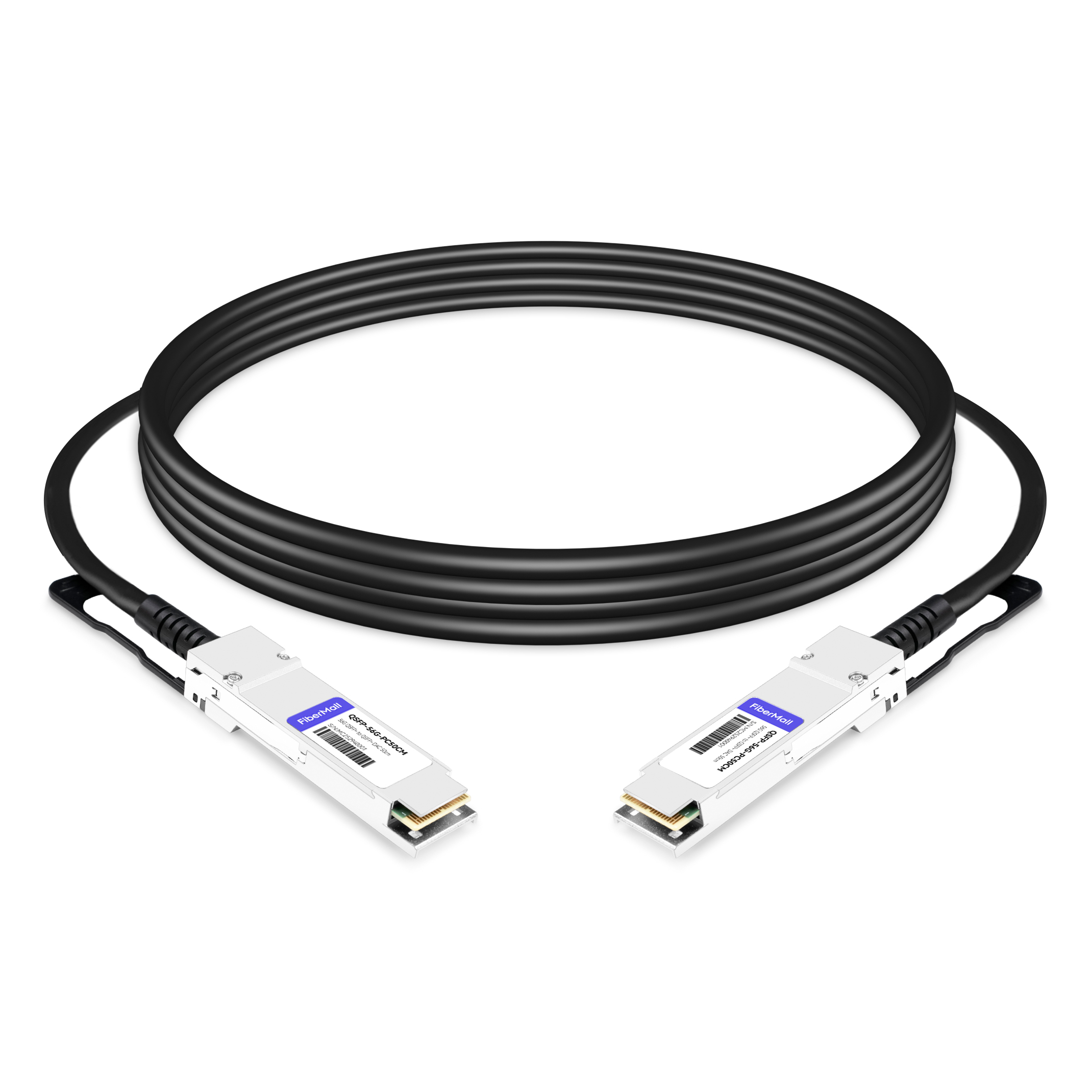

NVIDIA(Mellanox) MC2207130-00A Compatible 50cm (1.6ft) 56G FDR QSFP+ to QSFP+ Copper Direct Attach Cable
Price range: $30.00 through $48.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA(Mellanox) MC2207130-00A Compatible 50cm 56G?FDR QSFP+ Twinax Copper Cable (QSFP+ to QSFP+ DAC Cable, Passive AWG30 50cm)
The 56G QSFP+ to QSFP+ direct attach cable runs on passive copper wire, ensuring connection quality without the need for additional power. The DAC complies with IEEE802.3cd and SFF-8432 standards. Available in various wire gauge options from 30 to 24 AWG, and various cable length options (up to 7m). It is suitable for cost-effective short-distance interconnection in telecom operators or data center computer rooms, and LAN or SAN applications with interconnection speeds up to 50G.
Product Details
| Mellanox Compatible | MC2207130-00A | Vendor Name | FiberMall |
| Connector | QSFP+ to QSFP+ | Max Data Rate | 56Gbps |
| Cable Length | 50cm (1.6ft) | AWG | AWG 30 |
| Jacket Material | PVC(OFNR) | Minimum Bend Radius | 35mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 56G InfiniBand / SFF- 8436 |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Compatible | Mellanox |
|---|---|
| Length | 50cm (1.6ft), 1m (3ft), 2m (7ft), 3m (10ft), 4m (13ft), 5m (16ft) |
| Mellanox Compatible | MC2207130-00A |
| Vendor Name | FiberMall |
| Connector | QSFP+ to QSFP+ |
| Max Data Rate | 56Gbps |
| Cable Length | 50cm (1.6ft) |
| AWG | AWG 30 |
| Jacket Material | PVC(OFNR) |
| Minimum Bend Radius | 35mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Protocols | 56G InfiniBand / SFF- 8436 |
