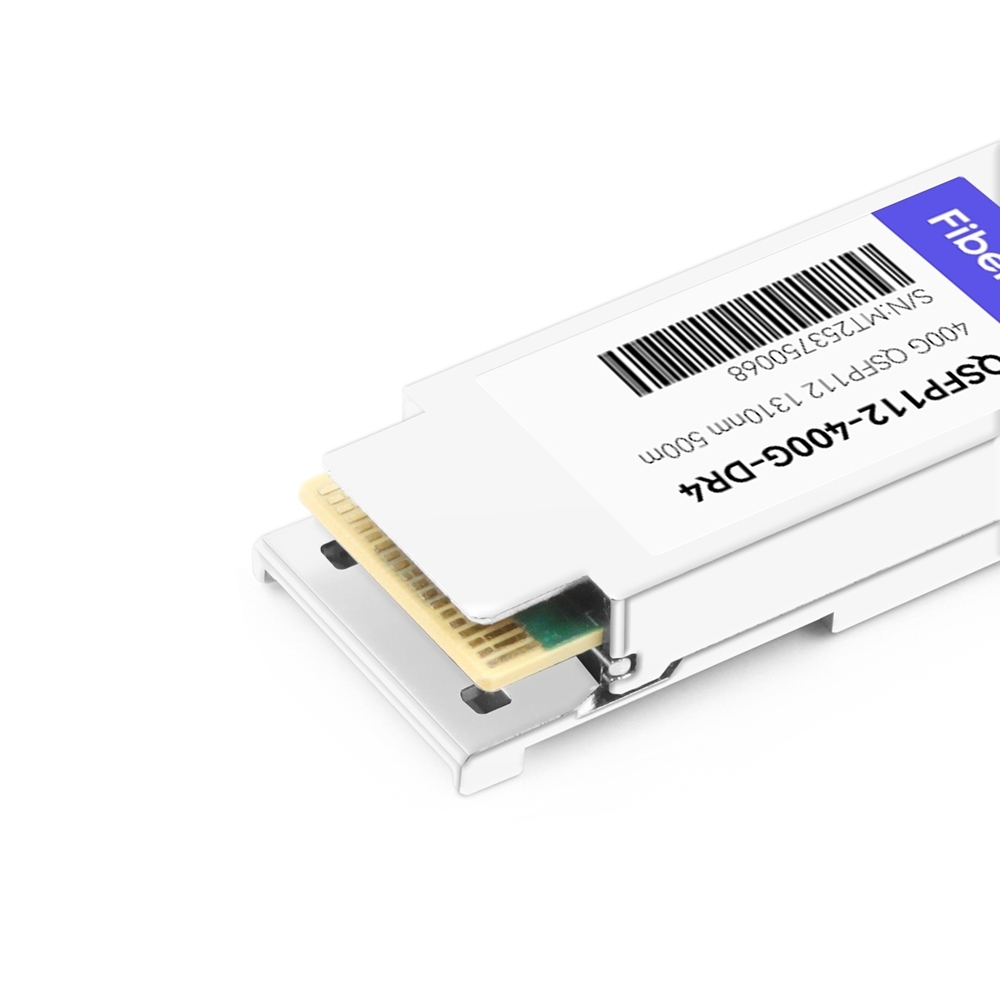

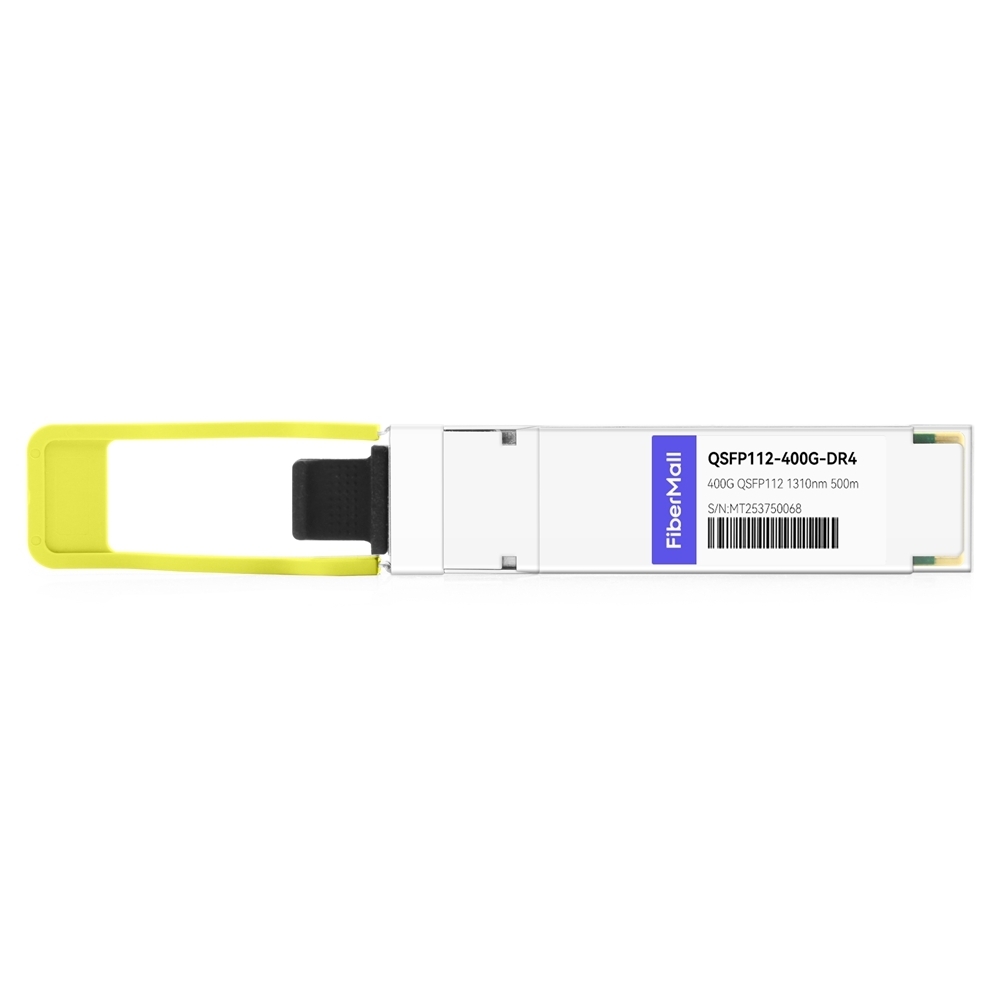

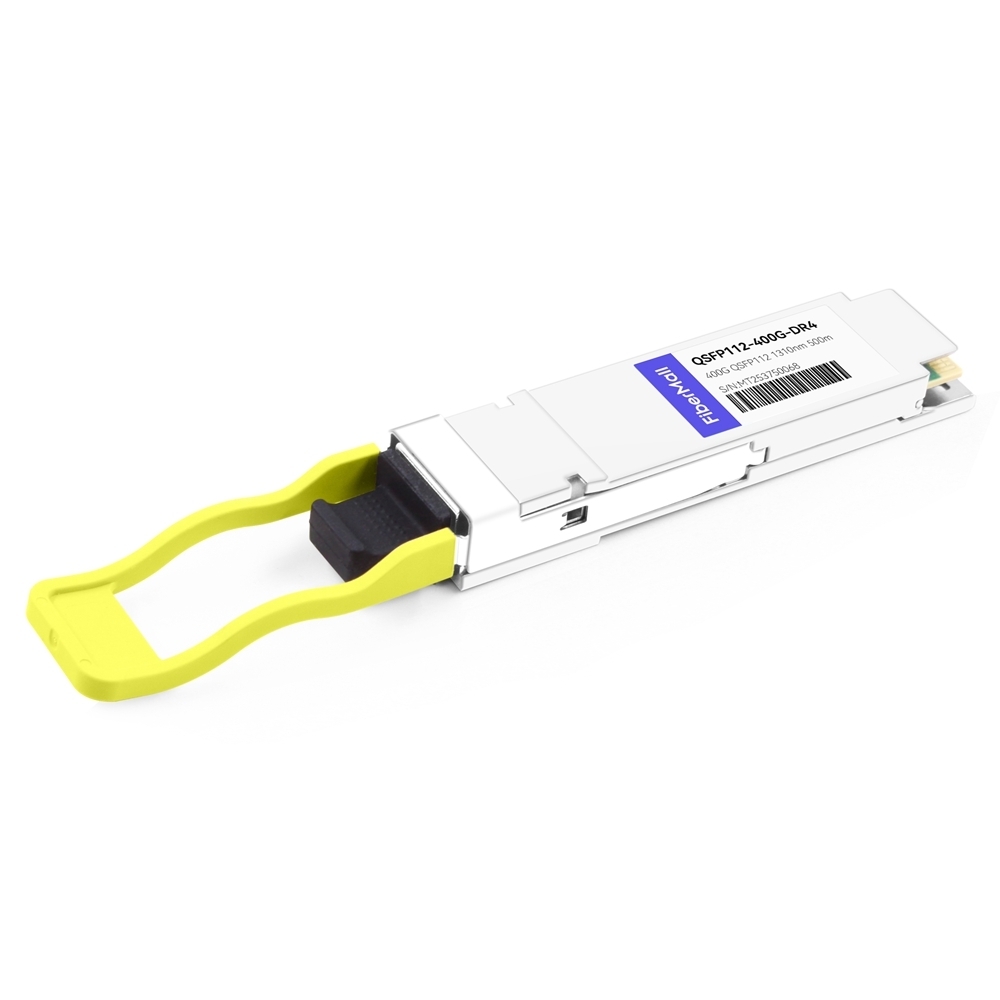

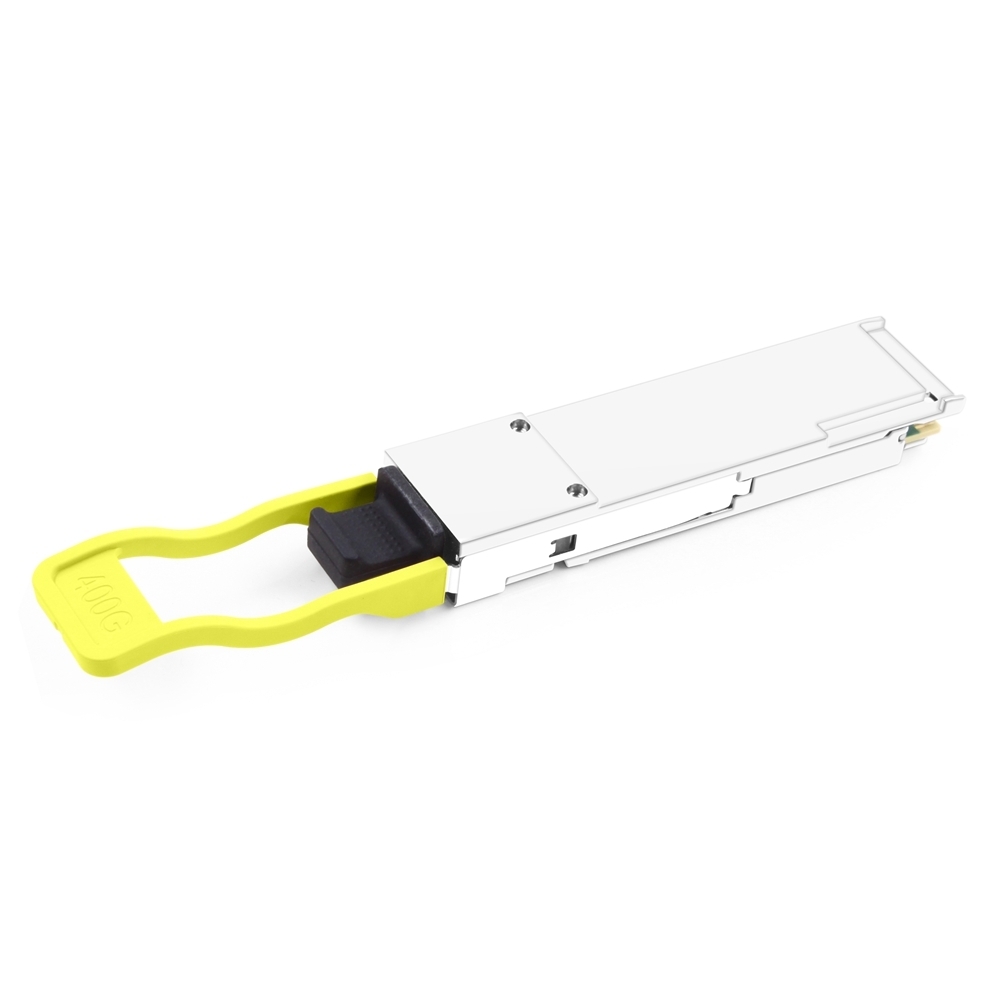

NVIDIA MMS1Z00-NS400 Compatible 400G NDR QSFP112 DR4 PAM4 1310nm 500m MPO-12 with FEC Optical Transceiver Module

Name: NVIDIA MMS1Z00-NS400 Compatible 400G NDR QSFP112 DR4 PAM4 1310nm 500m MPO-12 with FEC Optical Transceiver Module
SKU: 2941
Availability: InStock

Price range: $550.00 through $850.00

Compatible

Transceiver Type

Clear

Compare

Add to wishlist

NVIDIA MMS1Z00-NS400 Compatible 400G NDR QSFP112 DR4 PAM4 Optical Transceiver Module (1310nm MTP/MPO12 SMF 500m with KP4 FEC DDM)

The QSFP112 4x100Gbps transceiver module is designed for 400G Ethernet links over 500m of single-mode fiber. The module contains 4 parallel channels at a center wavelength of 1310nm, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

Product Details

NVIDIA Compatible	MMS1Z00-NS400	Vendor Name	FiberMall
Form Factor	QSFP112	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-12	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	1310nm EML	Receiver Type	PIN
TX Power	-2.9~+4.0dBm	Receiver Sensitivity	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 10.5W
Protocols	QSFP112 MSA, IEEE 802.3bs	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

NVIDIA MMS1Z00-NS400 400Gbase QSFP112 DR4 Module | FiberMall

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials and production
technology
to ensure the first-class quality of our products, so that your project can be used, installed
stably
and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the
mainstream brand switches and devices.Before
shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall’s OSFP series products incorporate advanced technology and design, boasting advantages
such as high efficiency, density, reliability, and low power consumption. They stand as an ideal
choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes :

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) – Optics

Switch to Switch (NDR) – Copper

Switch to Switch (NDR) – Active Copper & Direct Attached Copper

Switch to Switch (NDR) – HDR&EDR

Switch to HCA

Switch to HCA (NDR) – Optics

Switch to HCA (NDR) – Copper

Switch-to-DGX H100 GPU Systems

Compatible	NVIDIA
Transceiver Type	MMA1Z00-NS400, MMA4Z00-NS400, MMS4X00-NS400, MMS1Z00-NS400
NVIDIA Compatible	MMS1Z00-NS400
Vendor Name	FiberMall
Form Factor	QSFP112
Max Data Rate	425Gbps
Wavelength	1310nm
Max Distance	500m
Modulation Format	PAM4
Host Required	FEC
Connector	MTP/MPO-12
Voltage Supply	3.3V
Cable Type	SMF
DDM Support	Yes
Transmitter Type	1310nm EML
Receiver Type	PIN
TX Power	-2.9~+4.0dBm
Receiver Sensitivity	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)
Maximum Power	< 10.5W
