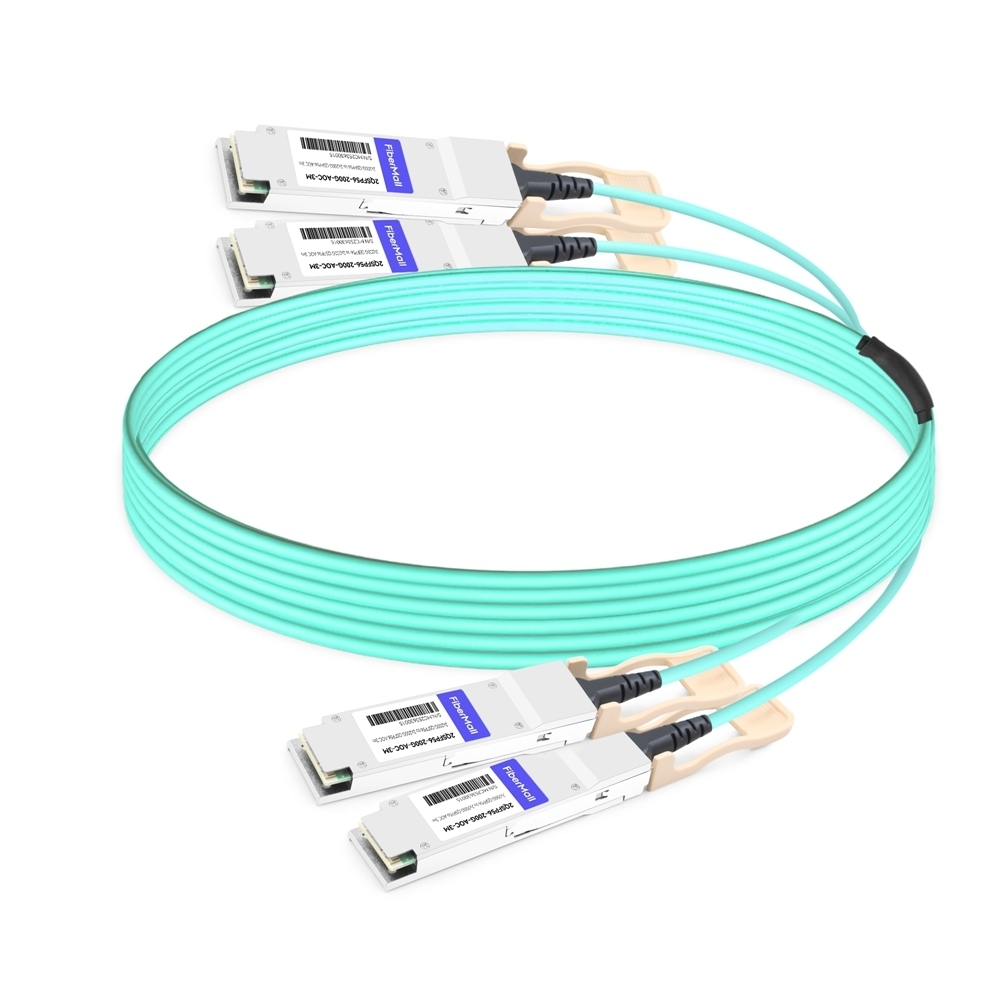

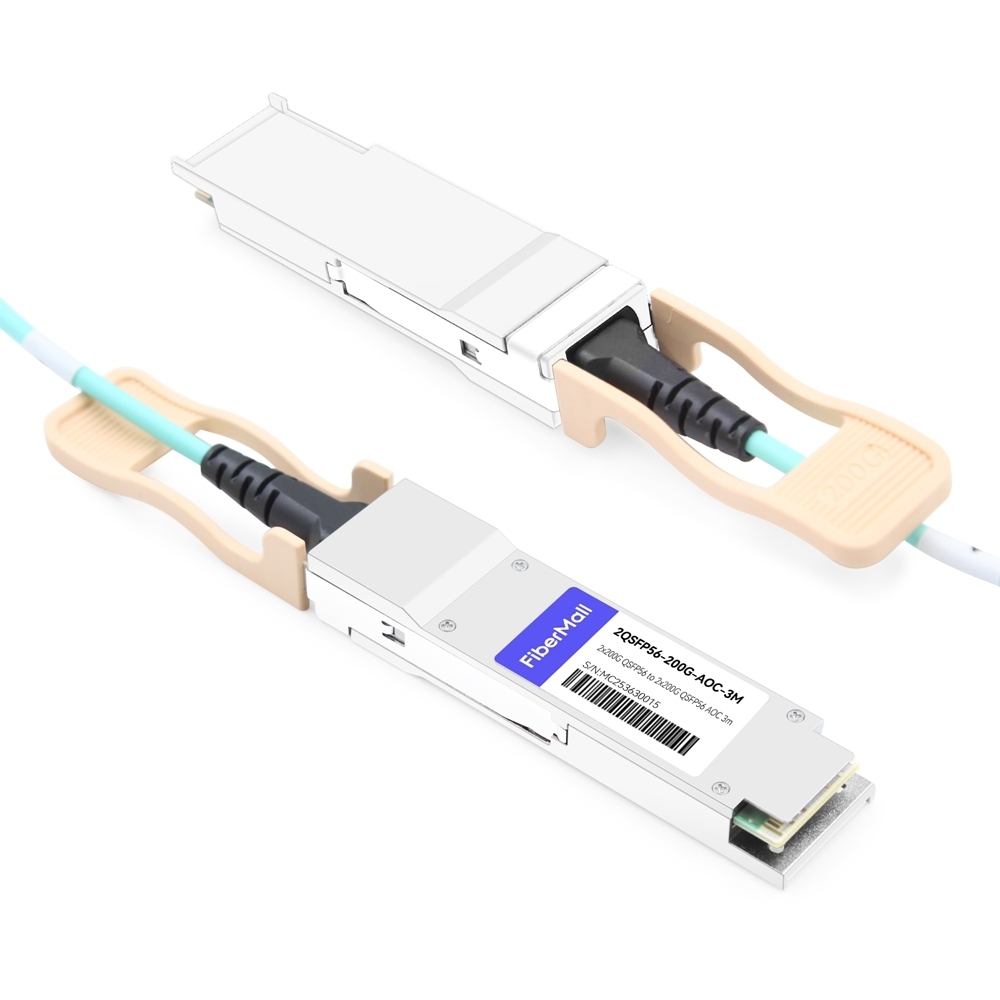

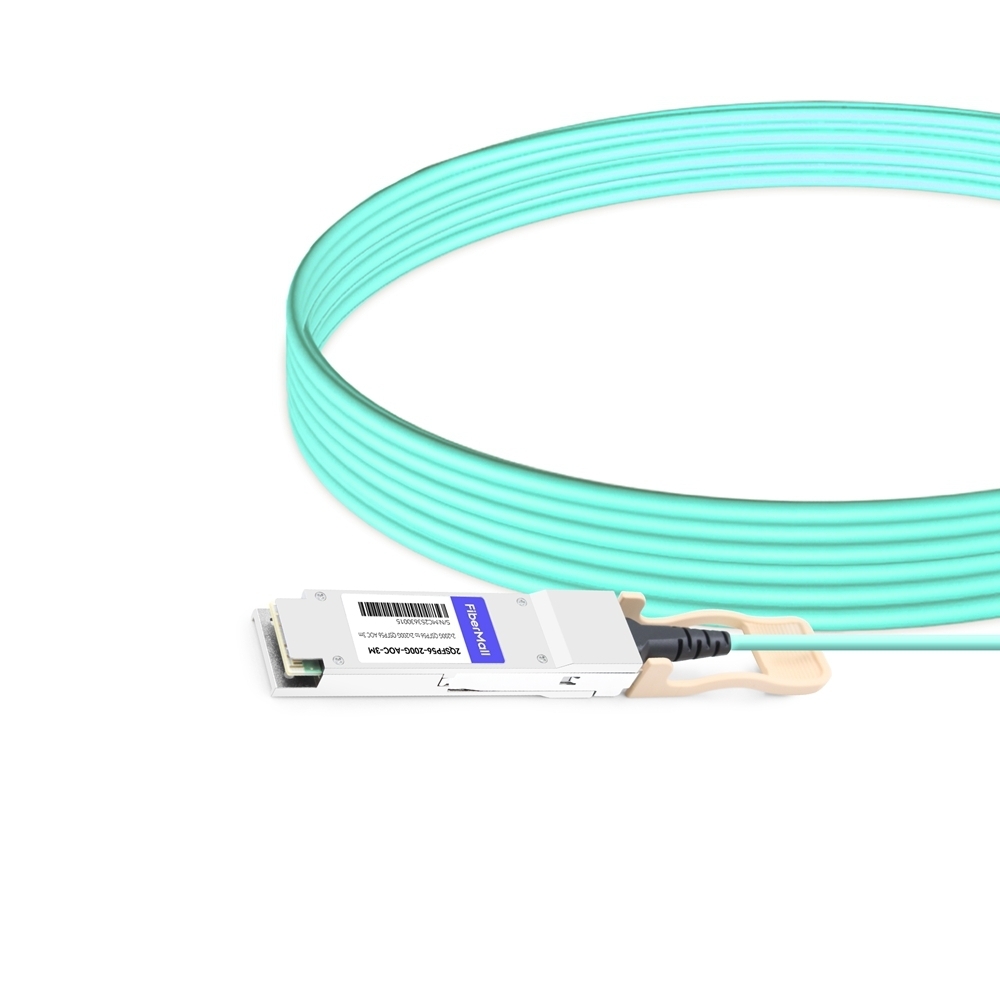

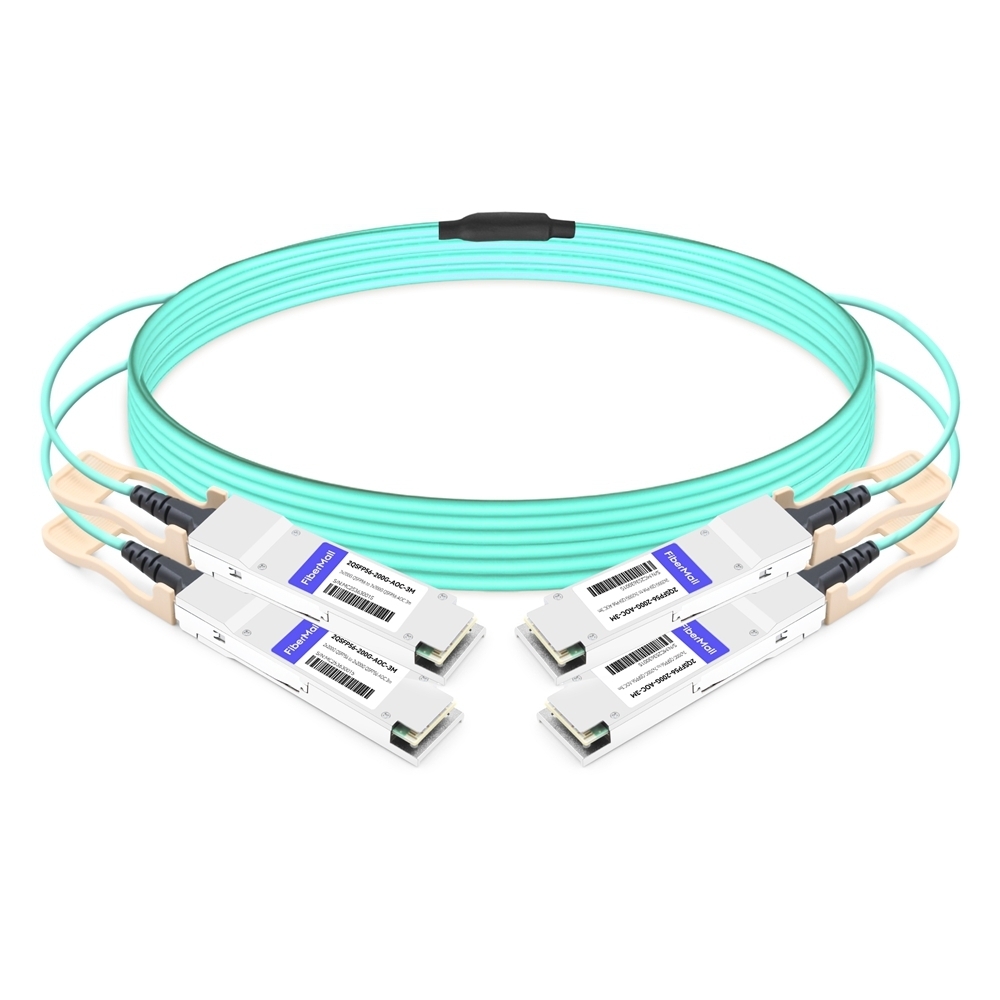

NVIDIA MFS1S90-H003E Compatible 3m (10ft) 2x200G QSFP56 to 2x200G QSFP56 PAM4 Breakout Active Optical Cable
Price range: $800.00 through $860.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA MFS1S90-H003E Compatible 3m 2x200G QSFP56 to 2x200G QSFP56 Breakout Active Optical Cable (QSFP56 to QSFP56 AOC Breakout Cable, Active 3m)
Product Details
| NVIDIA Compatible | MFS1S90-H003E | Vendor Name | FiberMall |
| Form Factor | 2x QSFP56 to 2x QSFP56 | Max Data Rate | 212.5Gb/s |
| Wavelength | 850nm | Cable Length | 3m (9.8ft) |
| Modulation Format | PAM4 | Host Required | FEC |
| Jacket Material | LSZH | Minimum Bend Radius | 30mm |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Voltage Supply | 3.3V |
| Protocols | QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4 |
Maximum Power | < 5W (200G QSFP56) |
| Connector | Fiber Optic Cable | Application | 200GBASE-SR4, 200G InfiniBand HDR |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Compatible | NVIDIA |
|---|---|
| Length | 3m, 5m, 10m, 15m, 20m, 30m |
| NVIDIA Compatible | MFS1S90-H003E |
| Vendor Name | FiberMall |
| Form Factor | 2x QSFP56 to 2x QSFP56 |
| Max Data Rate | 212.5Gb/s |
| Wavelength | 850nm |
| Cable Length | 3m (9.8ft) |
| Modulation Format | PAM4 |
| Host Required | FEC |
| Jacket Material | LSZH |
| Minimum Bend Radius | 30mm |
| Cable Type | MMF |
| DDM Support | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Voltage Supply | 3.3V |
| Protocols | QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4 |
| Maximum Power | < 5W (200G QSFP56) |
