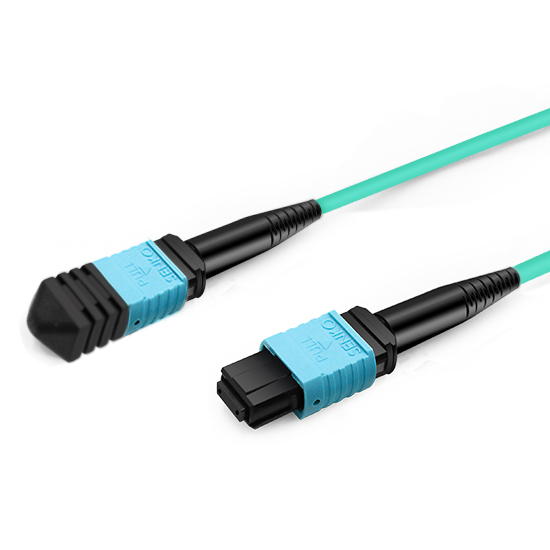

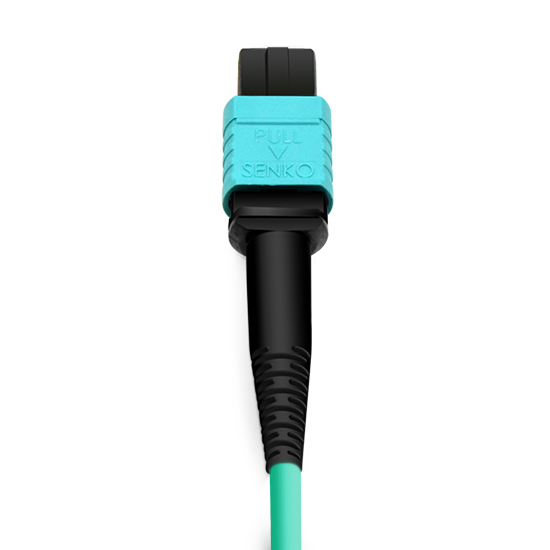

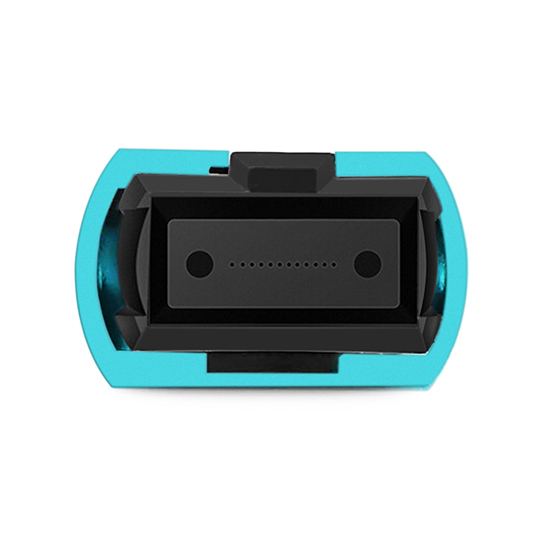

NVIDIA MFP7E10-N003 Compatible 3m (10ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125
Price range: $35.00 through $81.00
Subscription successful
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA MFP7E10-N003 Compatible 8 Fibers OM3 Multimode MPO Passive Fiber Cable 3m (MPO to MPO Cable)
Product Details
| Connector A | MPO Female | Connector B | MPO Female |
| Fiber Type | OM3 50/125μm Multimode | Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers | Distance | 3m (10ft) |
| Glass Fiber | Corning ClearCurve® | Cable Jacket | LSZH |
| Polish Type | APC to APC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥35dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm | Fiber Color | Aqua |
| Installation Tensile Load | 66 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
Quality Assurance
Excellent quality is the foundation of FiberMall’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
-
Short Lead Time
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial Product Testing
Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
- 3D Interferometer Test
- End-Face Inspection
- Insertion Loss and Return Loss Testing
Specifications
Connectors
Fiber Count
8 fibers
MPO-LC Harness Cables
12 fibers
MPO Trunk Cables / MPO-LC Harness Cables
24 fibers
MPO Trunk Cables
Fiber Type
- OM3 50/125 MMF
- Corning ClearCurve Multimode Fiber
- OM4 50/125 MMF
- Corning ClearCurve Multimode Fiber
- OS2 9/125 SMF
- Corning SMF-28 Ultra Optical Fiber
Gender Type
- MPO Male With Pins
- MPO Female Without Pins
Polarity Type
Packaging & Labeling
- Single Package
- Small Quantity Package
- Bulk quantity package
| Compatible Brands | NVIDIA |
|---|---|
| Length | 3m (10ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), 20m (66ft), 25m (82ft), 30m (98ft) |
| Connector A | MPO Female |
| Connector B | MPO Female |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers |
| Distance | 3m (10ft) |
| Glass Fiber | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | APC to APC |
| Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥35dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| Installation Tensile Load | 66 N |
| Long-Term Tensile Load | 50 N |
