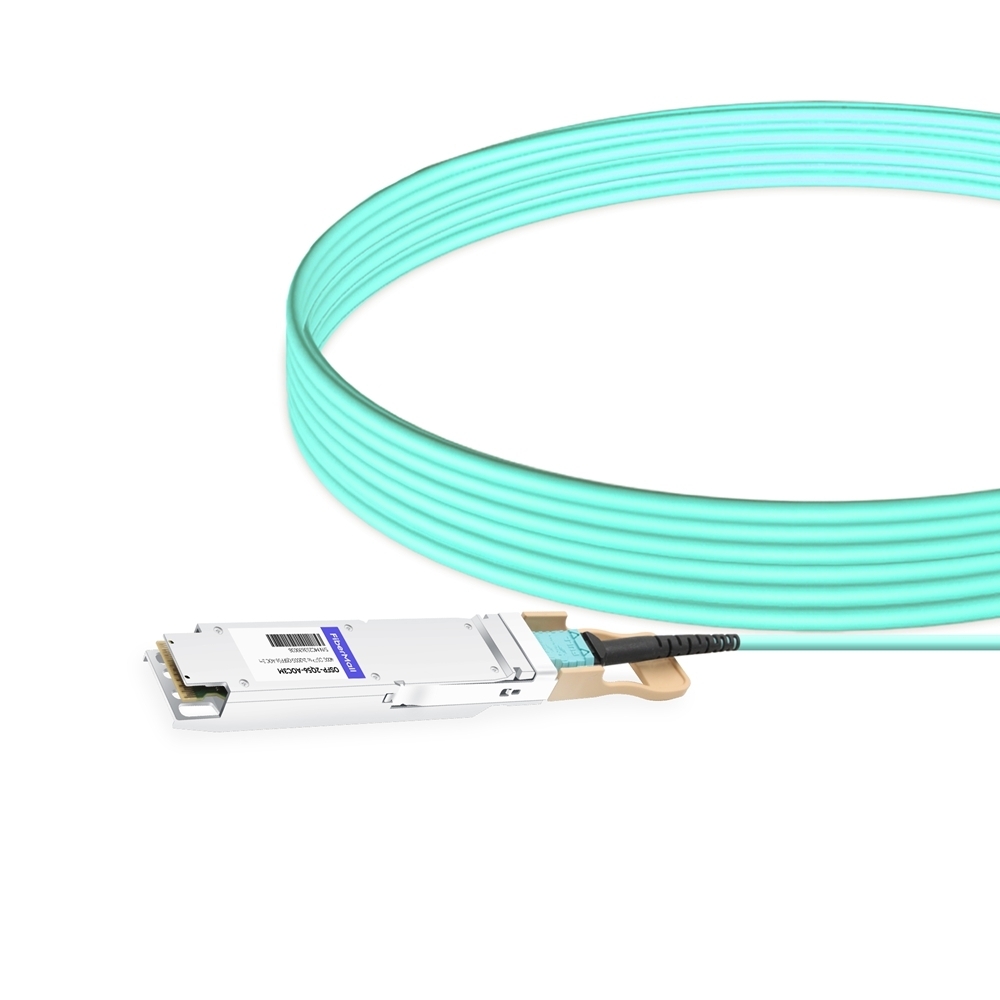

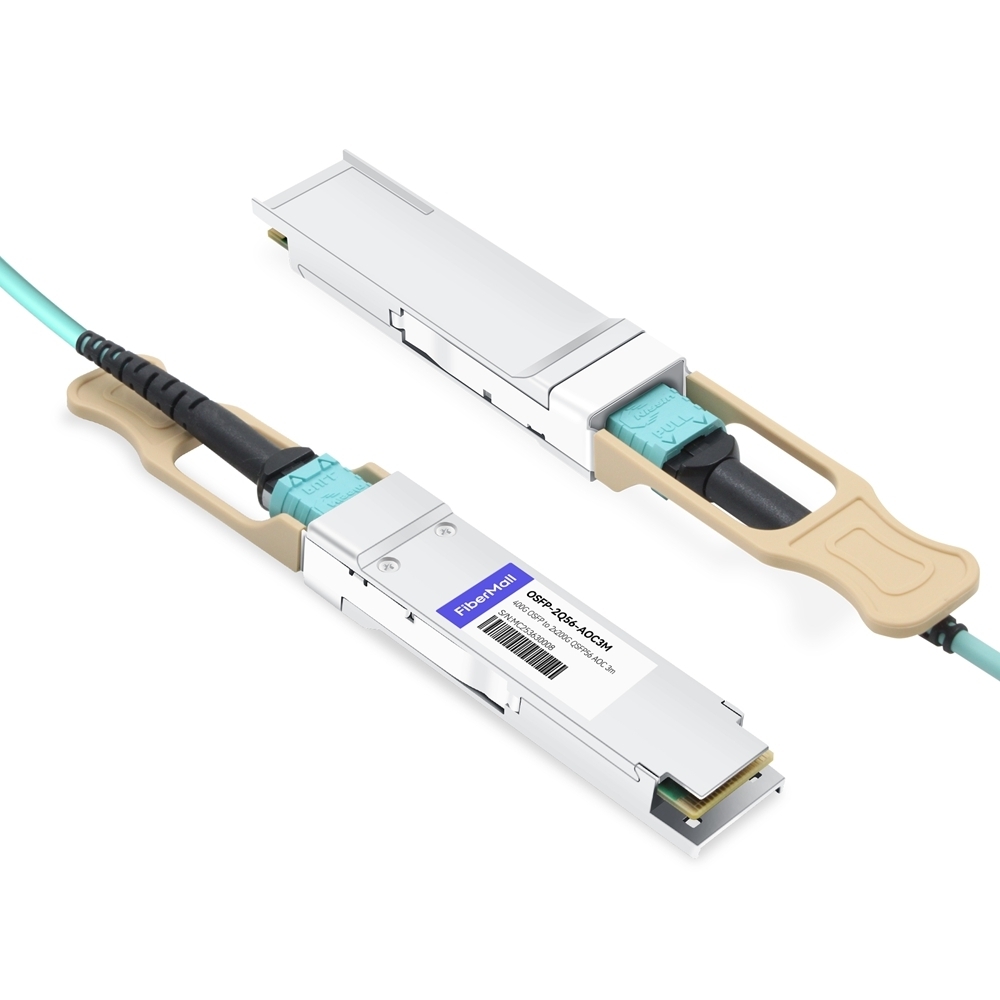

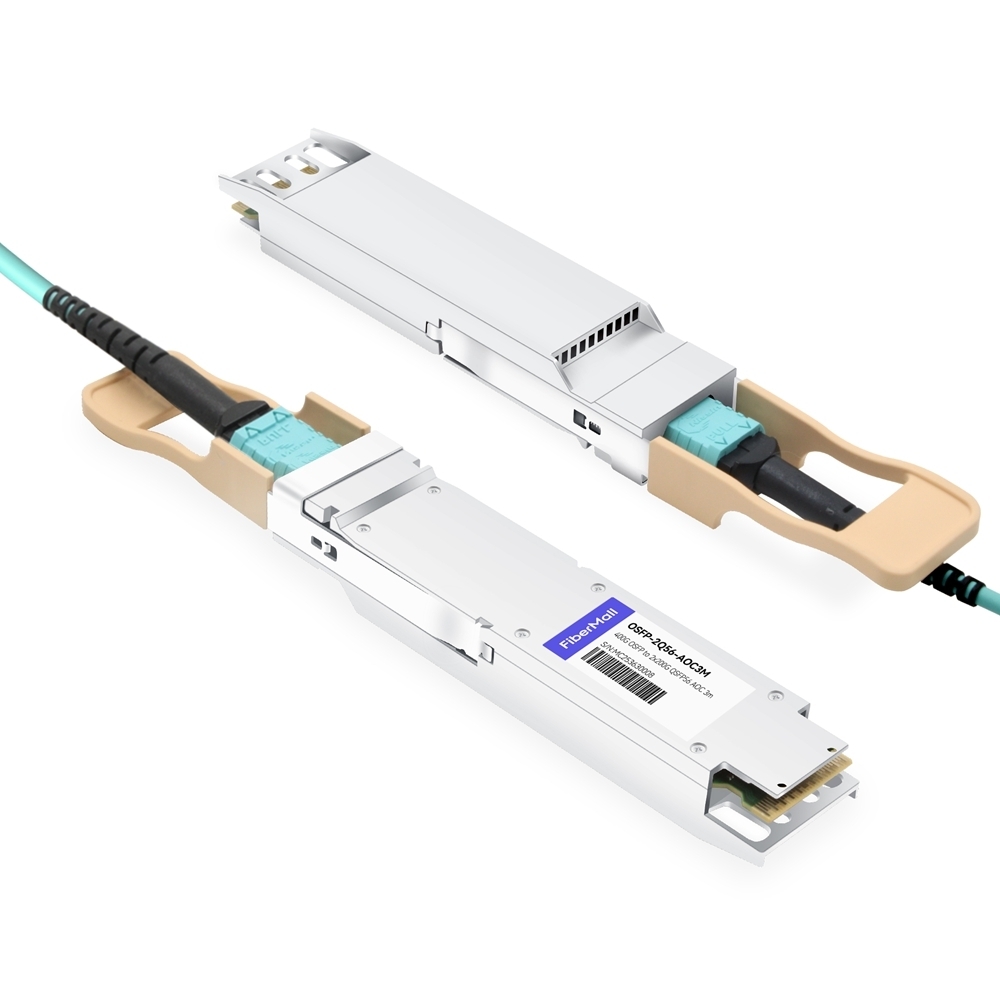

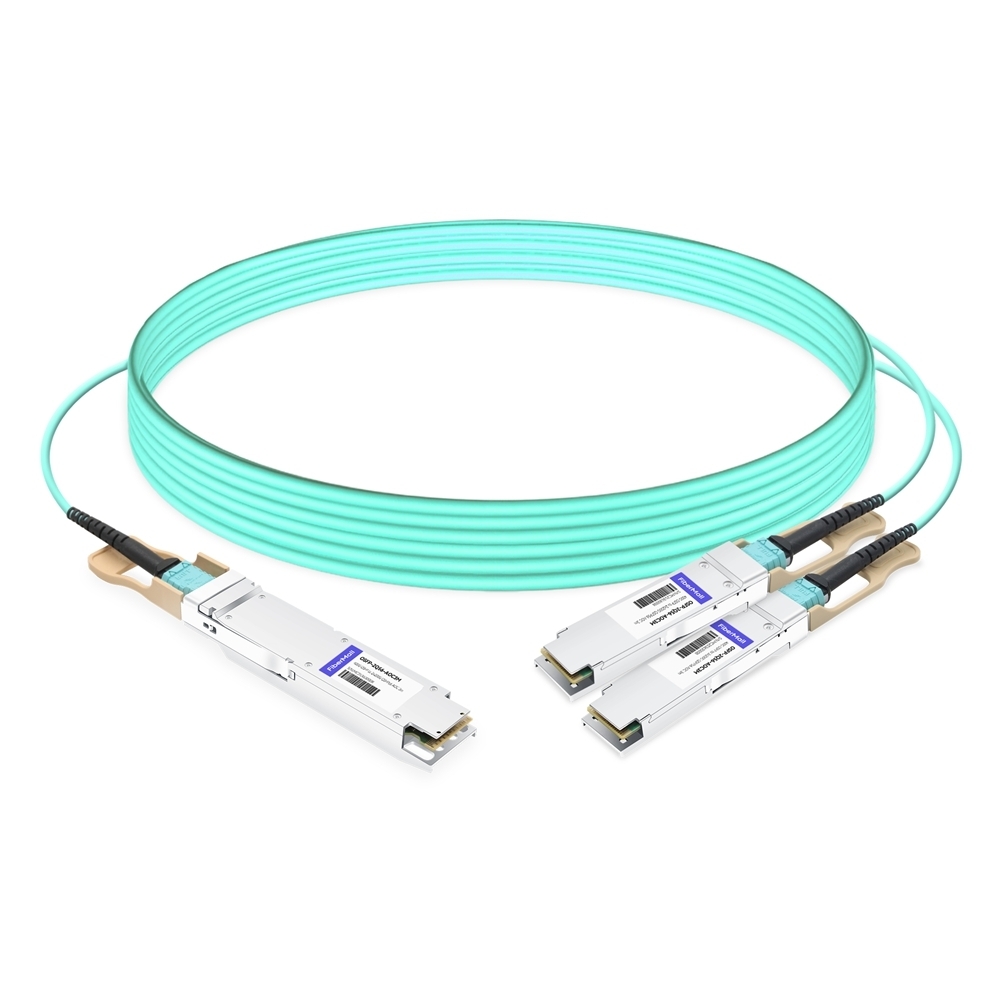

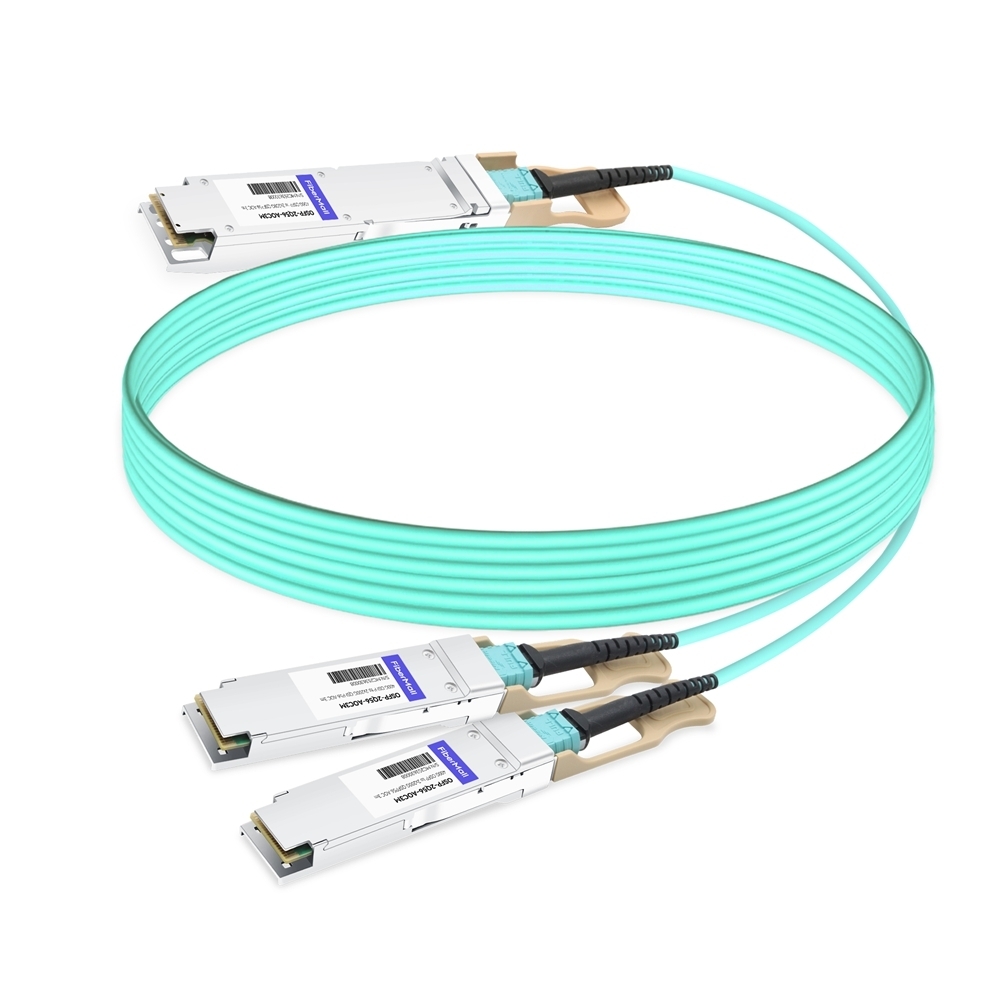

NVIDIA MFA7U10-H003 Compatible 3m (10ft) 400G OSFP to 2x200G QSFP56 twin port HDR Breakout AOC
Product Details
| NVIDIA Compatible | MFA7U10-H003 | Vendor Name | FiberMall |
| Form Factor | OSFP to 2x QSFP56 | Data Rate | 400Gb/s to 2 x 200Gb/s |
| Wavelength | 850nm | Cable Length | 3m (9.8ft) |
| Modulation Format | PAM4 | Host Required | FEC |
| Jacket Material | LSZH | Minimum Bend Radius | 30mm |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Voltage Supply | 3.3V |
| Protocols | CMIS 4.0, SFF-8636 | Maximum Power | < 10W (400G OSFP) < 5W (200G QSFP56) |
| Connector | Fiber Optic Cable | Application | 400GBASE-SR8 to 2x 200GBASE HDR, Ethernet |
Quality Assurance
Excellent quality is the foundation of FiberMall’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
| Compatible | NVIDIA |
|---|---|
| Length | 3m (10ft), 5m (16ft), 10m (33ft), 15m (49ft), 20m (66ft), 30m (98ft), 50m (164ft) |
| NVIDIA Compatible | MFA7U10-H003 |
| Vendor Name | FiberMall |
| Form Factor | OSFP to 2x QSFP56 |
| Data Rate | 400Gb/s to 2 x 200Gb/s |
| Wavelength | 850nm |
| Cable Length | 3m (9.8ft) |
| Modulation Format | PAM4 |
| Host Required | FEC |
| Jacket Material | LSZH |
| Minimum Bend Radius | 30mm |
| Cable Type | MMF |
| DDM Support | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Voltage Supply | 3.3V |
| Protocols | CMIS 4.0, SFF-8636 |
| Maximum Power | < 10W (400G OSFP) < 5W (200G QSFP56) |
