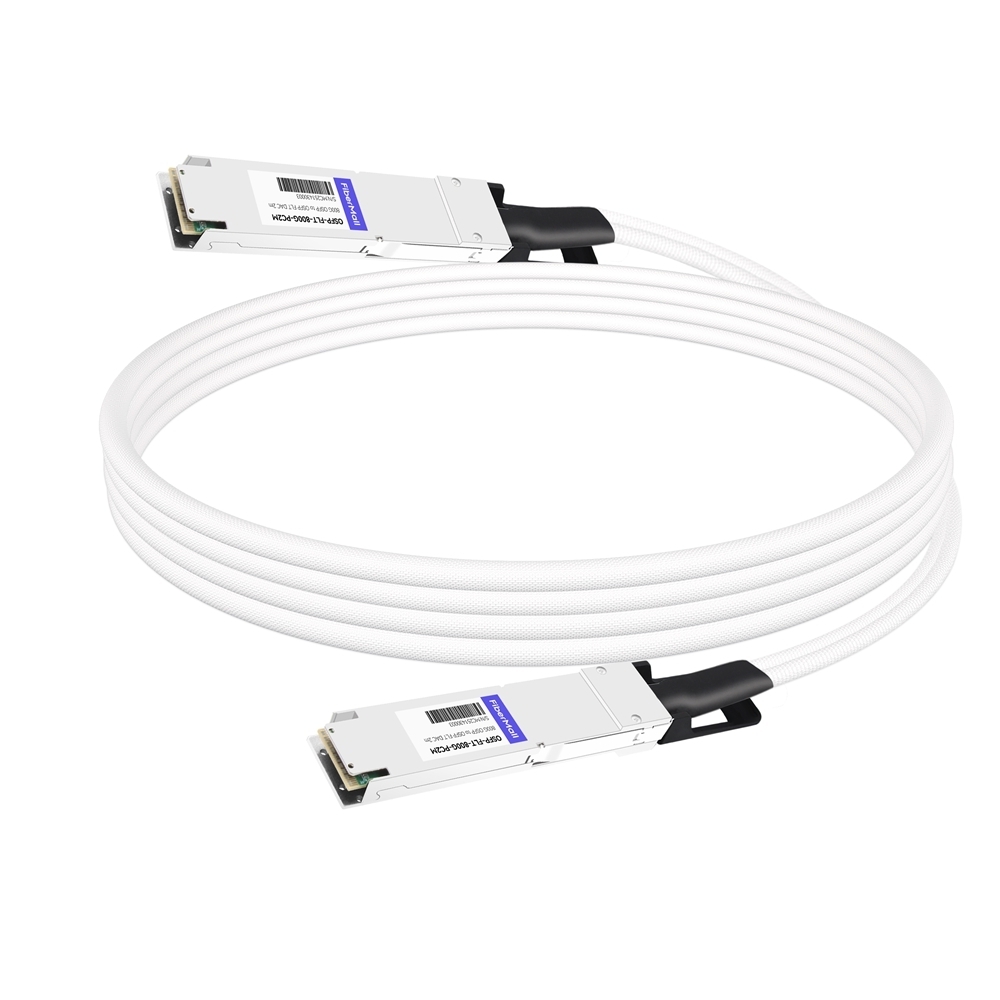

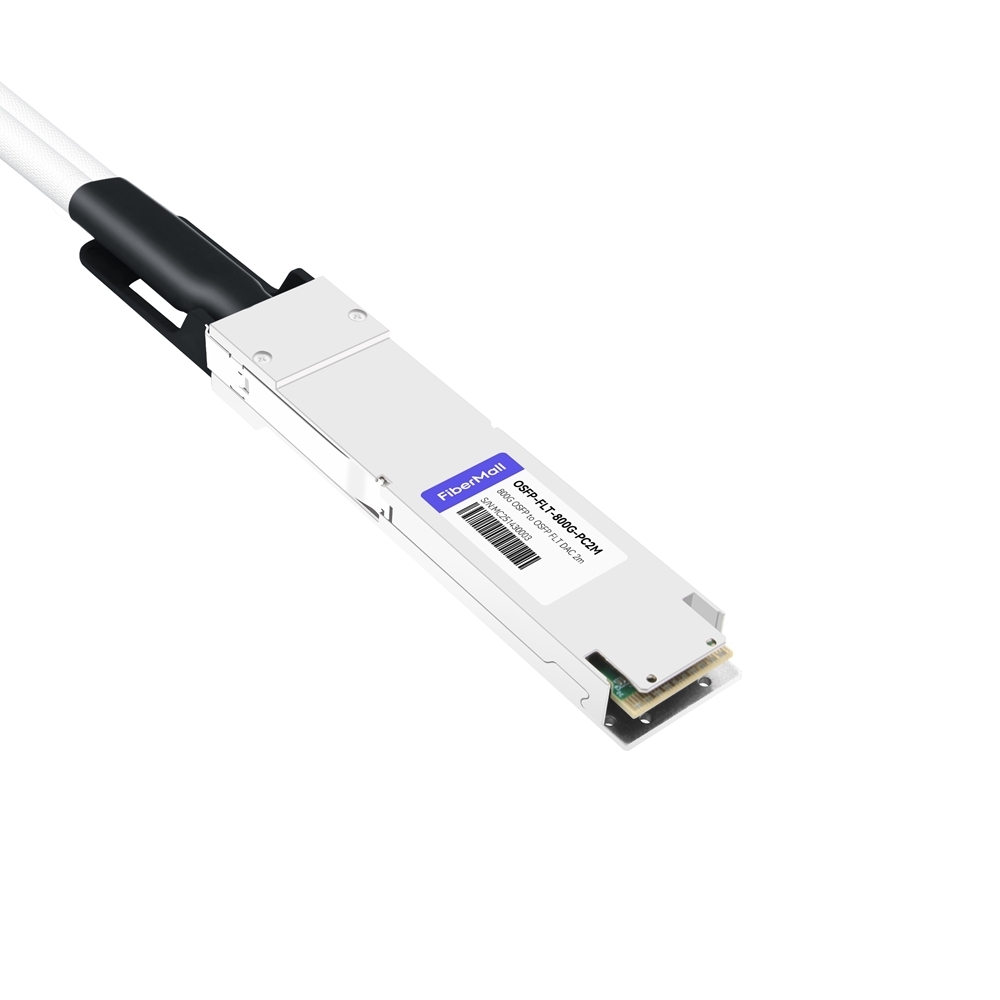

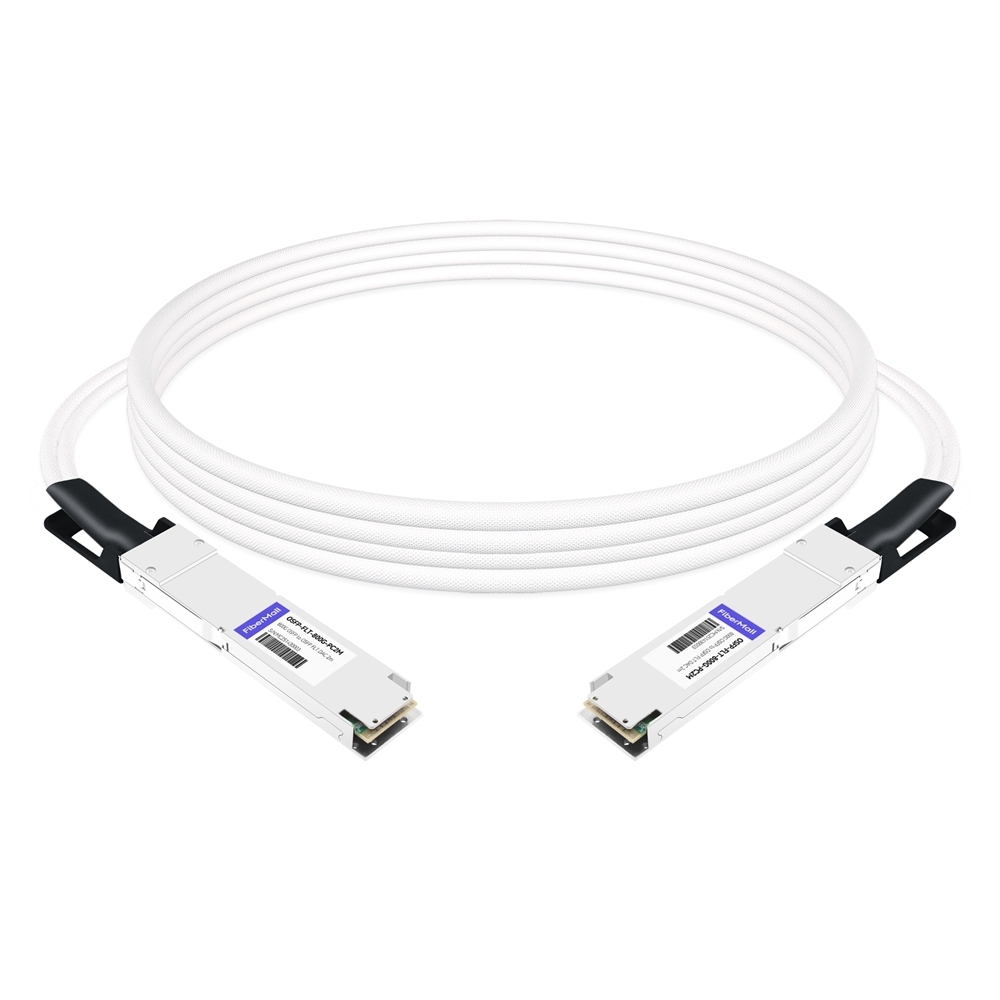

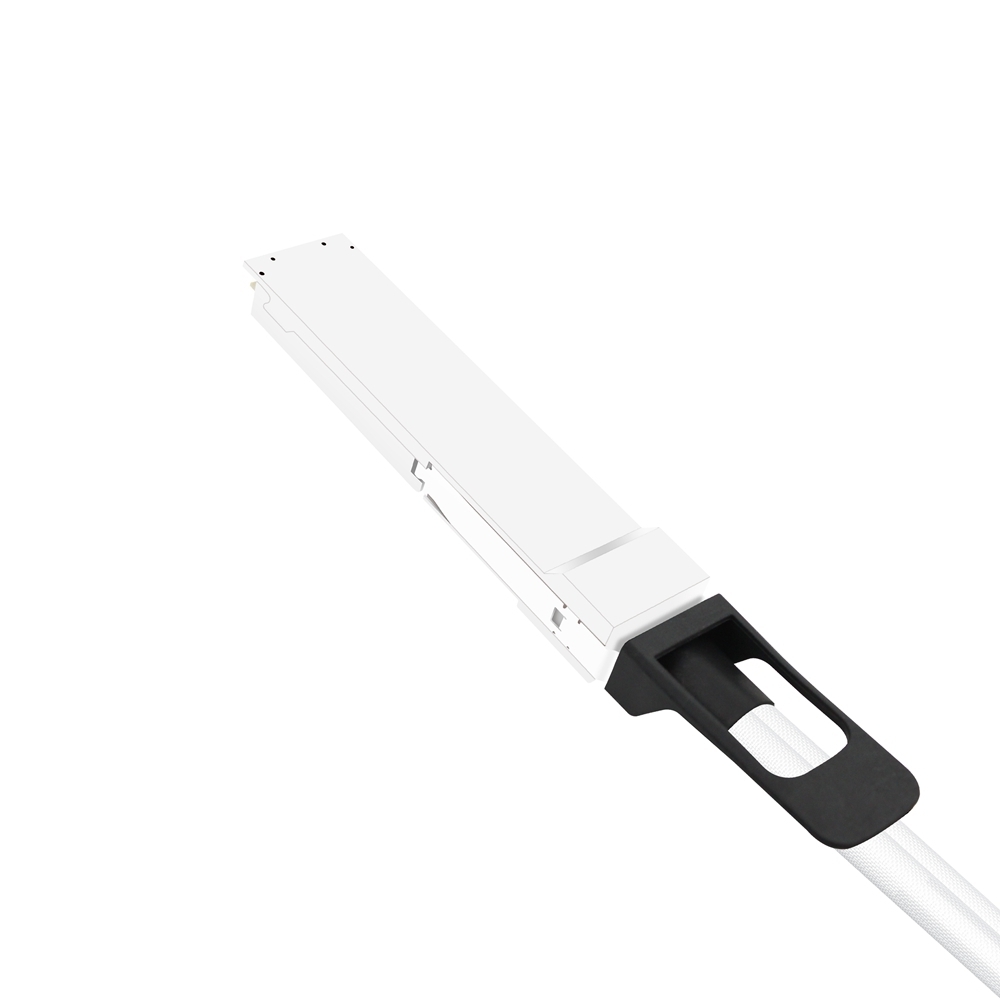

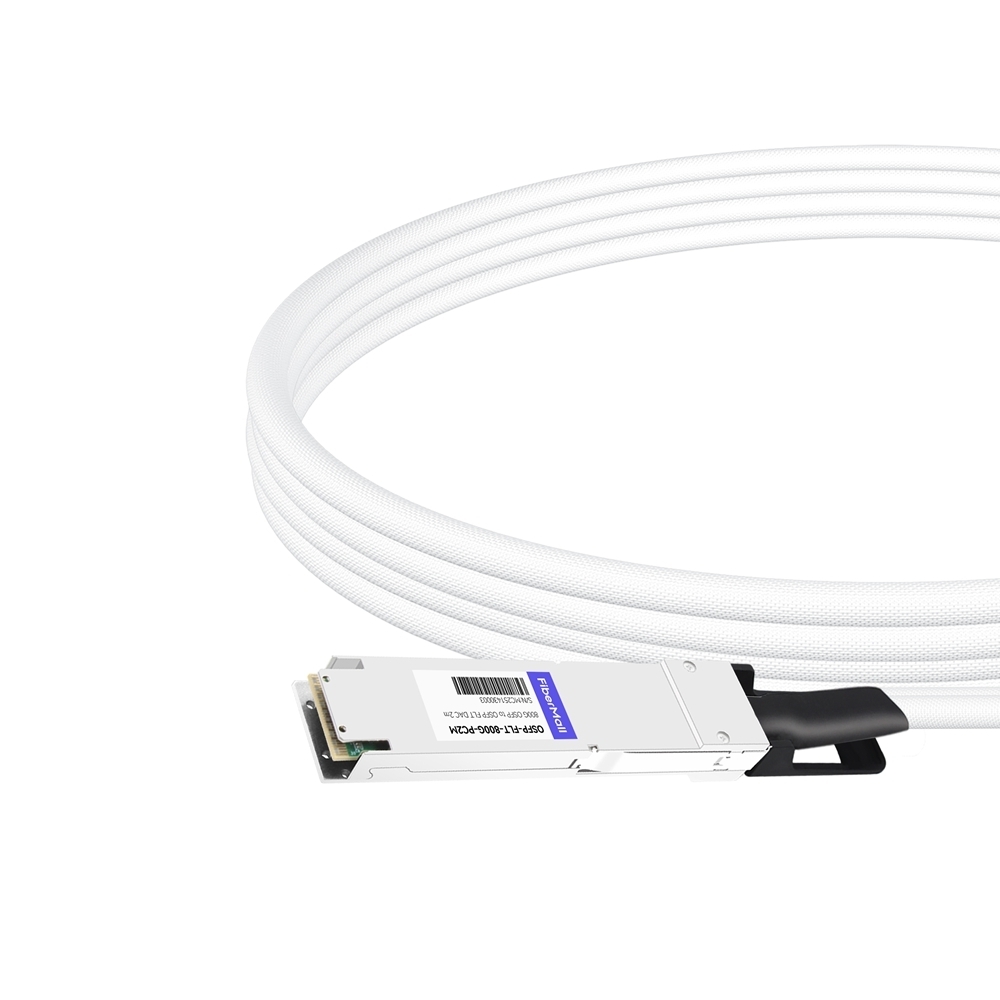

NVIDIA MCP4Y10-N002-FLT Compatible 2m (7ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC, Flat top on one end and Flat top on the other

Name: NVIDIA MCP4Y10-N002-FLT Compatible 2m (7ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC, Flat top on one end and Flat top on the other
SKU: 2961
Availability: InStock

Price range: $105.00 through $300.00

Compatible

Length

Clear

Compare

Add to wishlist

NVIDIA MCP4Y10-N002-FLT Compatible 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC (OSFP to OSFP DAC Cable, Passive 30AWG, Flat Top and Flat Top 2m)

Product Details

NVIDIA Compatible	MCP4Y10-N002-FLT	Vendor Name	FiberMall
Connector	OSFP to OSFP	Max Data Rate	800Gb/s
Wire Gages	26/25AWG	Cable Length	2m (7ft)
Jacket Material	Hair Tail Technology Net	Minimum Bend Radius	72mm
Operation Temperature	0~ 70 °C (32 to 158°F)	Modulation Format	PAM4
Protocols	OSFP MSA, CMIS, ETC 800GBASE-CR8	Application	800G InfiniBand NDR and Ethernet

Quality Assurance

Excellent quality is the foundation of FiberMall’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

NVIDIA MCP4Y10-N002-FLT 800G OSFP NDR Passive DAC FLT 2m | FiberMall

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials and production
technology
to ensure the first-class quality of our products, so that your project can be used, installed
stably
and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the
mainstream brand switches and devices.Before
shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall’s OSFP series products incorporate advanced technology and design, boasting advantages
such as high efficiency, density, reliability, and low power consumption. They stand as an ideal
choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes :

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) – Optics

Switch to Switch (NDR) – Copper

Switch to Switch (NDR) – Active Copper & Direct Attached Copper

Switch to Switch (NDR) – HDR&EDR

Switch to HCA

Switch to HCA (NDR) – Optics

Switch to HCA (NDR) – Copper

Switch-to-DGX H100 GPU Systems

Compatible	NVIDIA
Length	0.5m (FLT), 1m (FLT), 2m (FLT)
NVIDIA Compatible	MCP4Y10-N002-FLT
Vendor Name	FiberMall
Connector	OSFP to OSFP
Max Data Rate	800Gb/s
Wire Gages	26/25AWG
Cable Length	2m (7ft)
Jacket Material	Hair Tail Technology Net
Minimum Bend Radius	72mm
Operation Temperature	0~ 70 °C (32 to 158°F)
Modulation Format	PAM4
Protocols	OSFP MSA, CMIS, ETC 800GBASE-CR8
Application	800G InfiniBand NDR and Ethernet
