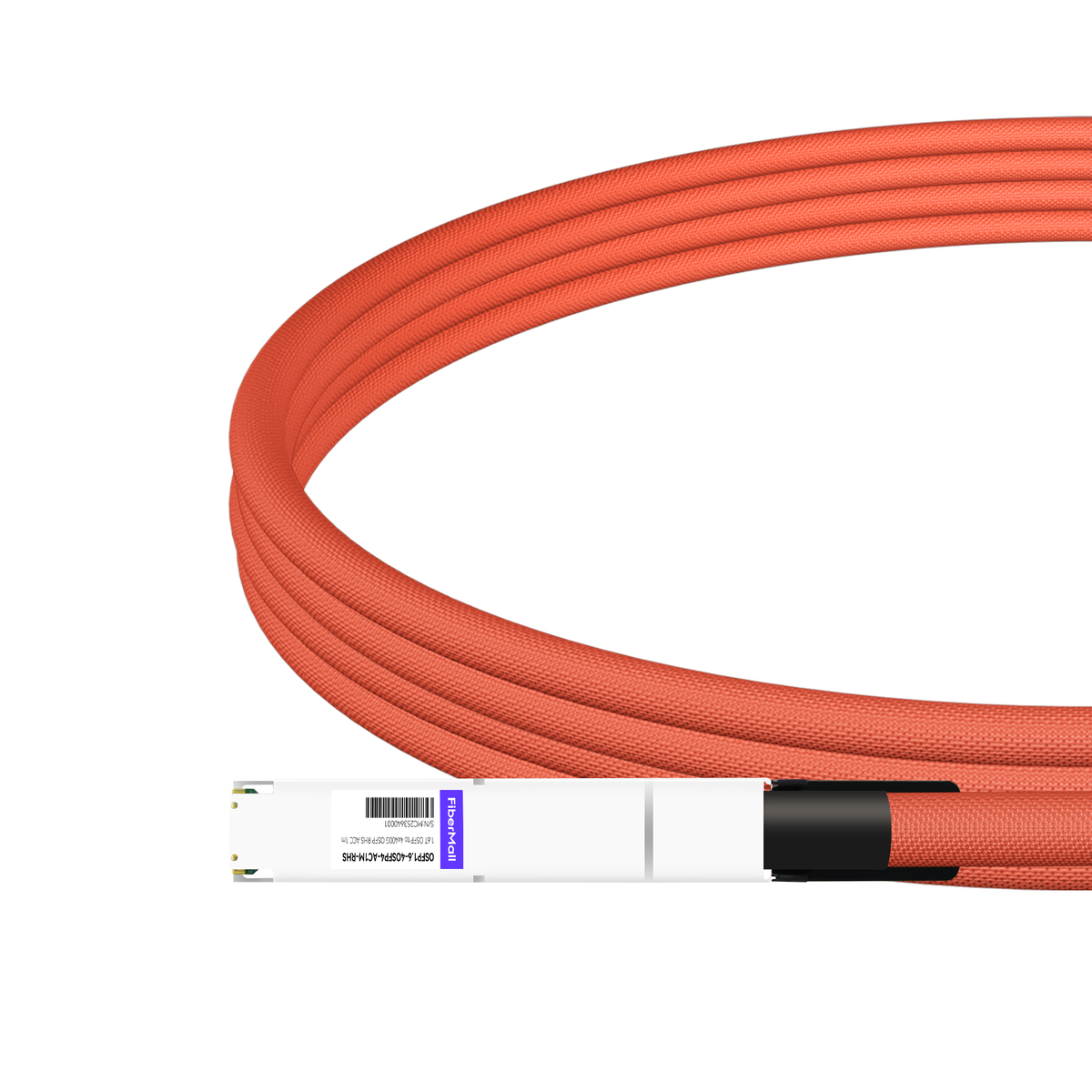

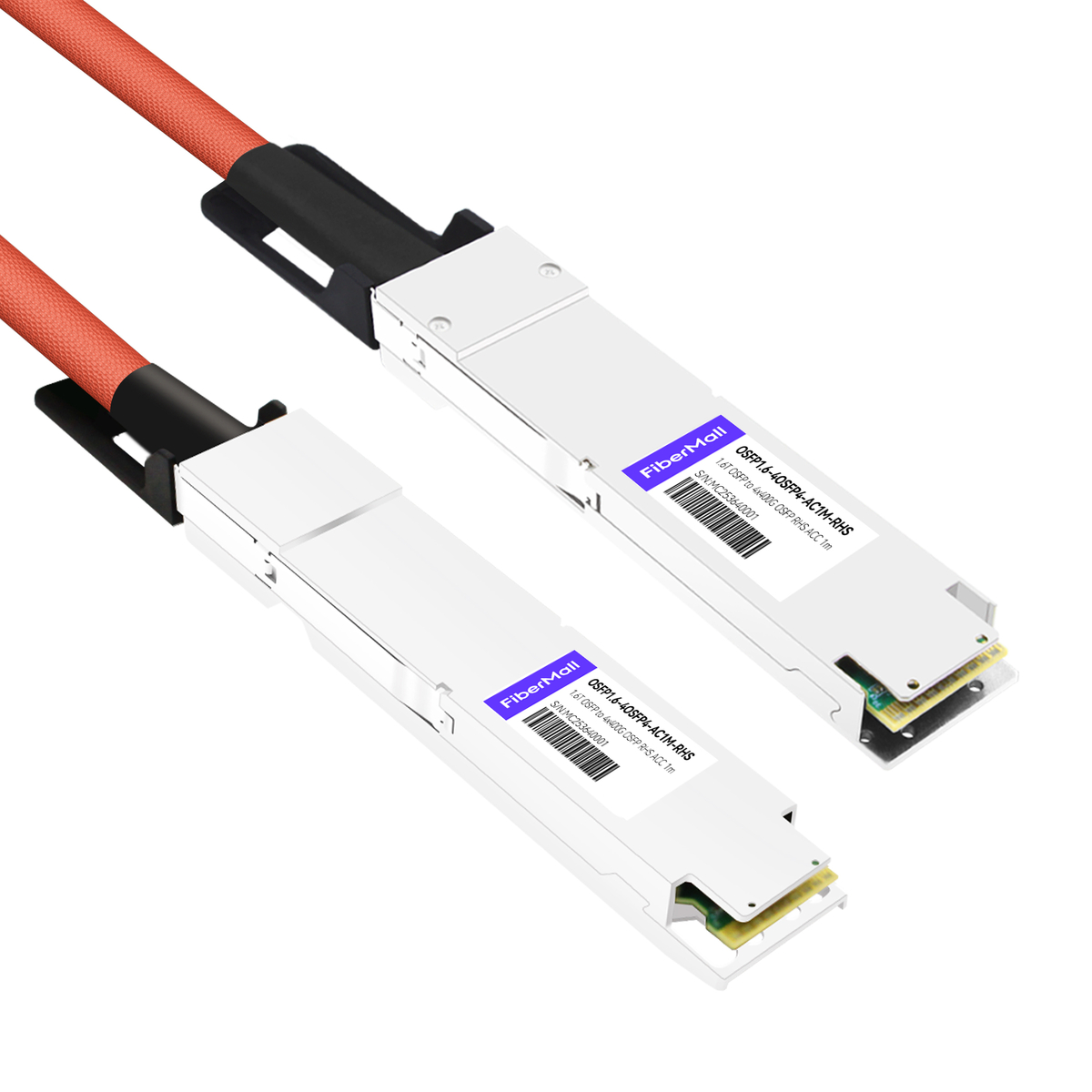

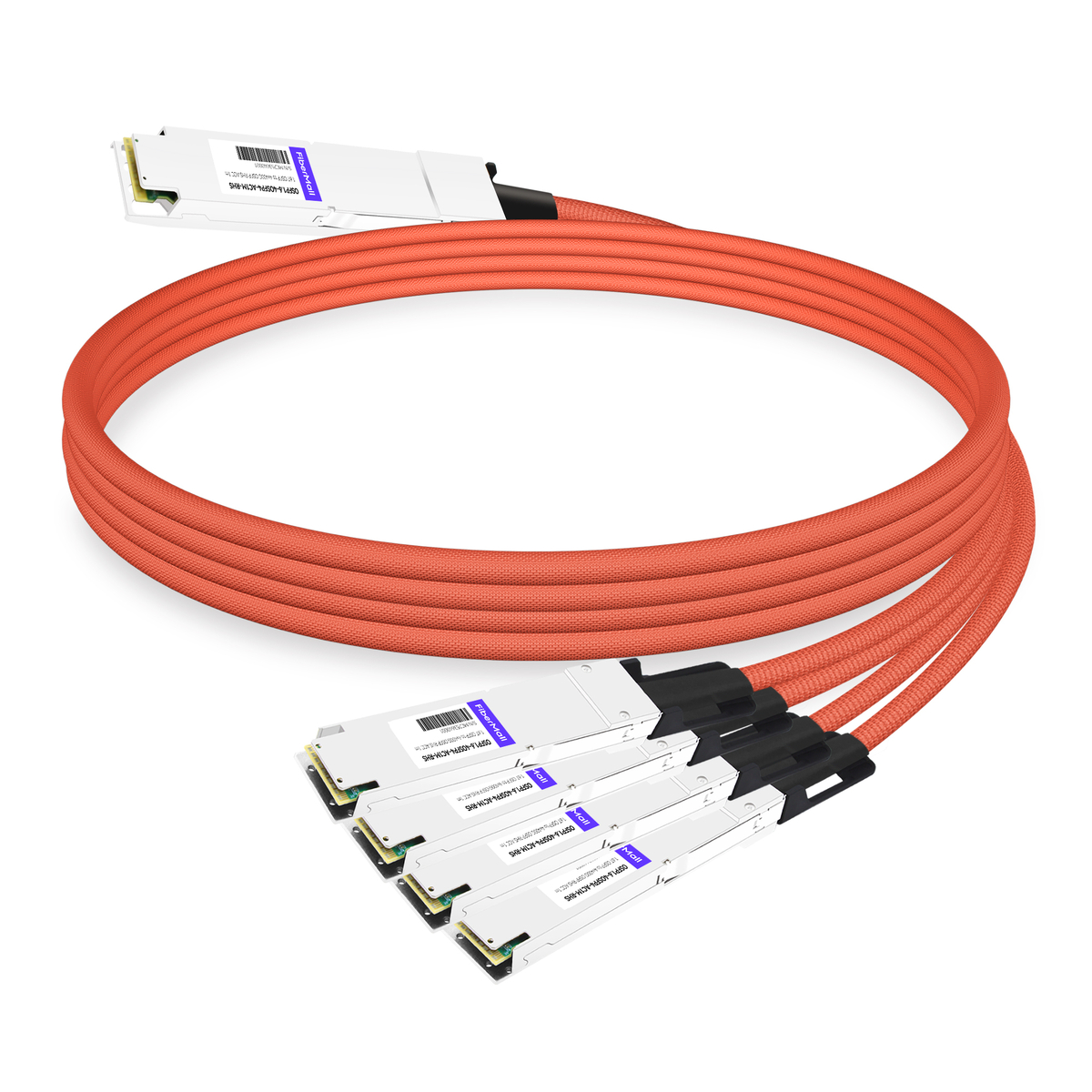

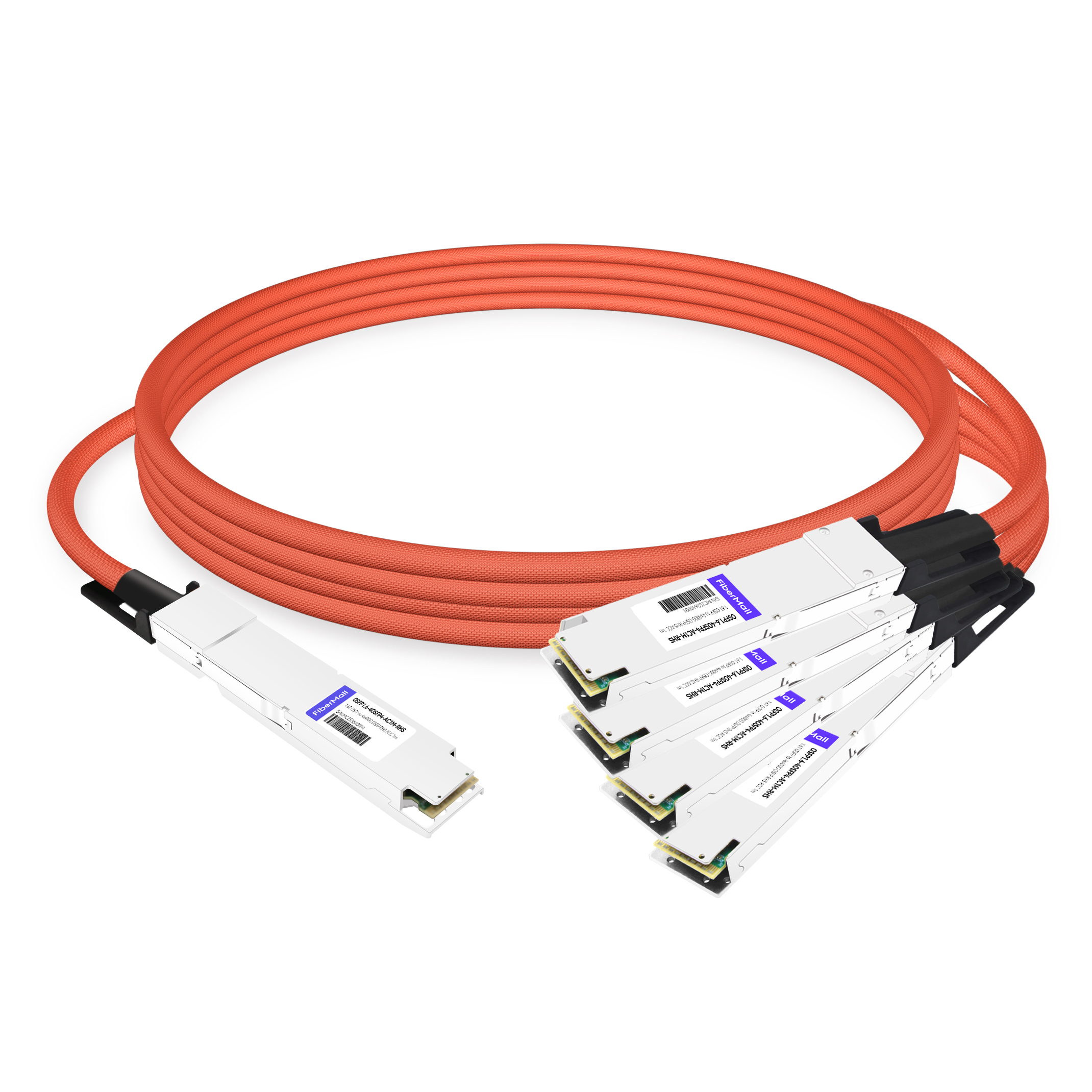

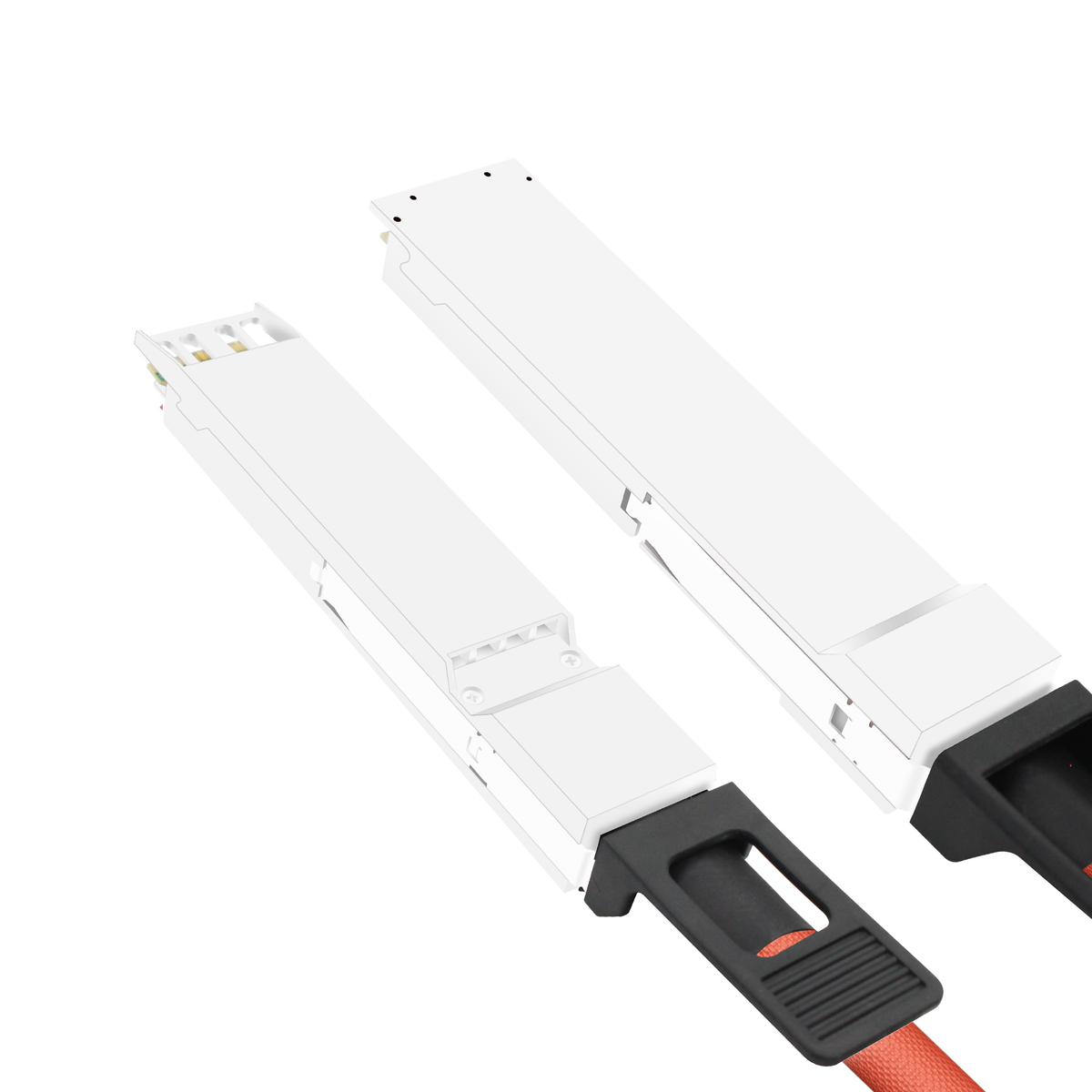

NVIDIA MCA7K20-X001 Compatible 1m (3ft) Twin-port 2x800Gb/s OSFP224 IHS/Finned Top to 4x400Gb/s OSFP224 RHS/Flat Top InfiniBand XDR Active Copper Splitter Cable
Price range: $2,059.00 through $2,369.00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NVIDIA MCA7K20-X001 Compatible Twin-port 2x800G OSFP to 4x400G OSFP InfiniBand XDR Active Copper Splitter Cable(OSFP IHS/Finned Top to OSFP RHS/Flat Top, Active 26AWG, 1m)
Product Details
| NVIDIA Compatible | MCA7K20-X001 | Vendor Name | FiberMall |
| Form Factor | OSFP224 IHS Finned Top to 4xOSFP224 RHS Flat Top | Cable Length | 1m (3ft) |
| Wire Gages | 26AWG | Minimum Bend Radius | 10xOD |
| Jacket Material | LSZH | Power Consumption | 2.5W |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Application | IB XDR,1.6T Ethernet Compliant |
Quality
Assurance
Quality Certification
our advantages
-
-
Keep In Stock
- Fast Delivery
-
-
Professional Service
- Technical Support
-
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
-
-
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
-
-
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
-
-
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
-
-
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
-
- Coding(EEPROM Programming)
-
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6 -
H3C S6850-56HF -
Cisco N9K-C92160YC-X -
HP JG510A -
Juniper QFX5110-48S-AFO -
Mellanox SN4700 -
Cisco-N9K-C93600CD-GX -
NVIDIA QM9790 -
Ruijie RG-S6990-128QC2XS
| Compatible | NVIDIA |
|---|---|
| Length | 1m (3ft), 1.5m (5ft), 2m (7ft), 2.5m (8.2ft) |
| NVIDIA Compatible | MCA7K20-X001 |
| Vendor Name | FiberMall |
| Form Factor | OSFP224 IHS Finned Top to 4xOSFP224 RHS Flat Top |
| Cable Length | 1m (3ft) |
| Wire Gages | 26AWG |
| Minimum Bend Radius | 10xOD |
| Jacket Material | LSZH |
| Power Consumption | 2.5W |
| Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Application | IB XDR,1.6T Ethernet Compliant |
